Bleed Fuel System

CAUTION:

X9811
X9811-UN-23AUG88

RXA0146345
RXA0146345-UN-25NOV14

Primary Fuel Filter

RXA0146344
RXA0146344-UN-13NOV14

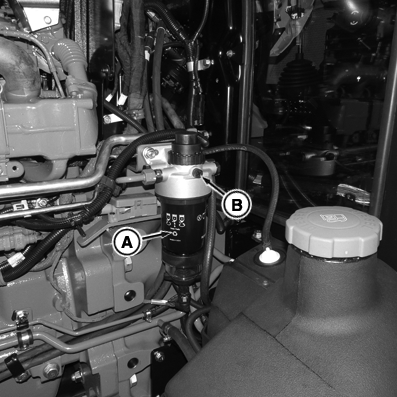

A - Primary Fuel Filter

B - Filter Housing Bleed Screw

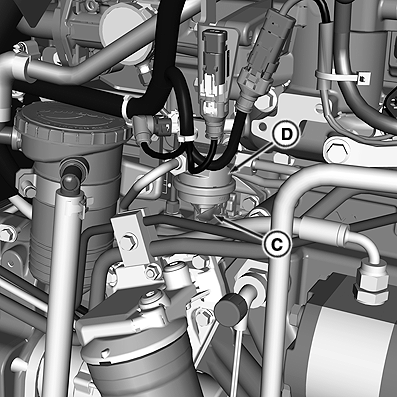

C - Priming Mechanism

D - Transfer Pump

Escaping fluid under pressure has the potential to penetrate the skin causing serious injury. Avoid the hazard by relieving pressure before disconnecting hydraulic or other lines. Tighten all connections before applying pressure. Search for leaks with a piece of cardboard. Protect hands and body from high-pressure fluids.

If an accident occurs, see a doctor immediately. Any fluid injected into the skin must be surgically removed within a few hours or gangrene is possible. Doctors unfamiliar with this type of injury must reference a knowledgeable medical source. Such information is available from Deere & Company Medical Department in Moline, Illinois, U.S.A., by calling 18008228262 or +1 3097485636.

IMPORTANT: To avoid injection pump damage, DO NOT attempt to start the engine while bleeding the fuel system.

  1. Park tractor on level ground and shut off engine. Remove key.

  2. Check fuel level. Add if necessary.

  3. Raise hood and locate primary fuel filter (A) on left-hand side of tractor.

  4. Loosen filter housing bleed screw (B).

  5. Push priming mechanism (C) at transfer pump (D) on right-hand side of tractor until fuel runs out smoothly from bleed screw without spitting. Tighten bleed screw.

    NOTE: Capture the discharge waste and dispose of properly.

  6. Lower hood.
