Tractor Controls—OOS

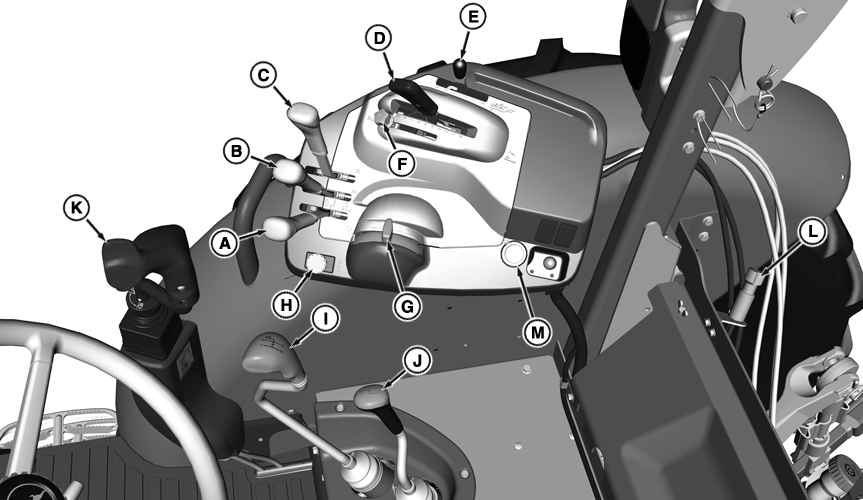

Right Side Controls

NOTE: The rockshaft rate-of-drop knob (L) is located behind driver’s seat on lower right-hand side.

RXA0146003-UN-19NOV14

A - SCV Lever I

B - SCV Lever II

C - SCV Lever III

D - Rockshaft Position Control Lever

E - Rockshaft Draft Control Lever

F - Position Control Stop Knob

G - Hand Throttle

H - PTO Switch

I - Gear Shift Lever

J - Range Shift Lever

K - Multi-function Lever

L - Rockshaft Rate-of-Drop Knob

M - Power Outlet

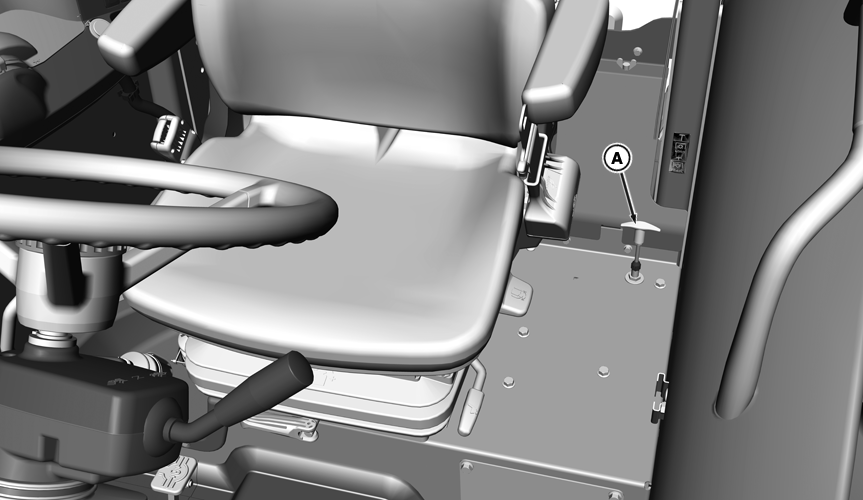

Left Side Controls

RXA0146004-UN-22OCT14

A - 540/540E PTO Shift Lever
