Loader Auxiliary Driving Lights—If Equipped
LV9465-UN-03SEP04

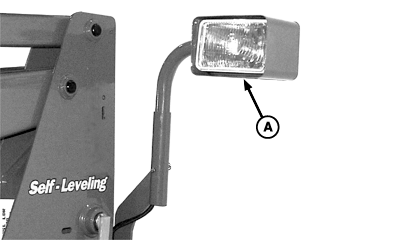

Auxiliary Driving Light Assembly (Left Side Shown)
LV14361-UN-20MAY11

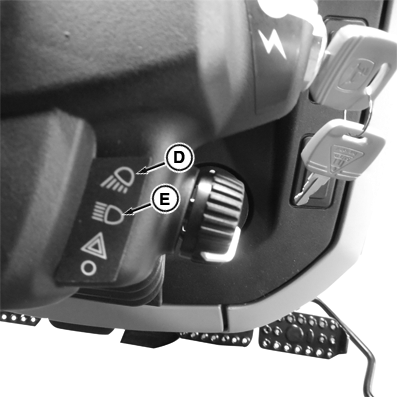

Loader Auxiliary Driving Light Switch
RXA0146347-UN-25NOV14
A - Auxiliary Driving Light Assembly
B - Auxiliary Driving Lights On Position
C - Auxiliary Driving Lights Off Position
D - Road Lights Position
E - Work Lights Position
Auxiliary driving lights can be used as an alternative for obscured driving headlights mounted in front grille.NOTE: Auxiliary light arms swing toward loader frame for storage. Auxiliary driving lights are only available with loader.
|
Auxiliary Light Switch |
Main Light Switch |
Auxiliary Driving Lights |
Grille Headlights |
|---|---|---|---|
|
B—On |
D—Road |
On |
Off |
|
E—Work |
On |
Off |
|
|
C—Off |
D—Road |
Off |
On |
|
E—Work |
Off |
On |
|
GS25068,00014A8-19-20141124 |
