Defrost Windshield

LV8596-UN-14AUG03

RXA0146348-UN-25NOV14

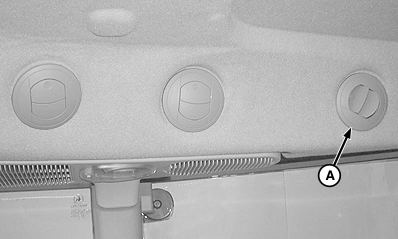

A - Front Vent

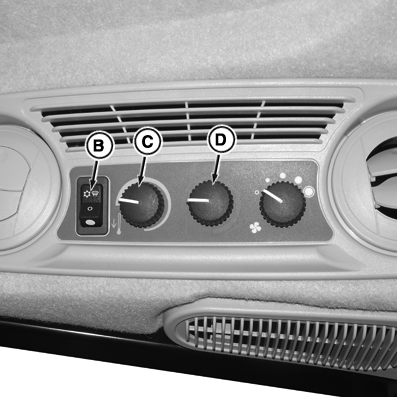

B - Defrost Switch

C - Air Conditioner Temperature Control Knob

D - Heater Temperature Control Knob

1. NOTE: Closing middle and rear vents helps clear windshield faster.

   Aim two front vents (A) toward windshield.

2. Press top half of defrost switch (B) and turn air conditioner temperature control knob (C) to full counterclockwise position.

3. Turn heater temperature control knob (D) clockwise to obtain desired temperature.
