Replace Fan Belt

1. NOTE: Fan drive belt is equipped with an automatic tensioner which does not require adjustment.

   Place tractor in park and SHUT OFF engine. Remove key.

2.

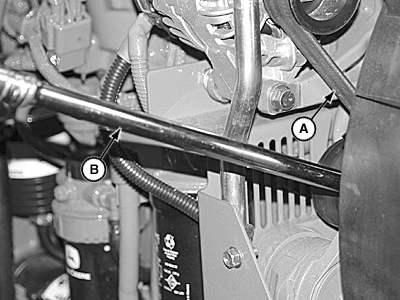

   LV14667-UN-18AUG11

   Remove Belt


   LV22215-UN-24JUN14

   A - Belt

   B - Breaker Bar

   Release tension on belt using a long-handle 1/2 in. drive breaker bar (B) to pull tensioner away from engine.

   Remove belt (A) from alternator pulley.

---




3. Release tension on tensioner and remove breaker bar.

4. Remove belt by bringing it over the fan clutch wire harness support and cooling fan. Slip it between the fan blades and fan shroud.

5. Install new belt in reverse order of removal.

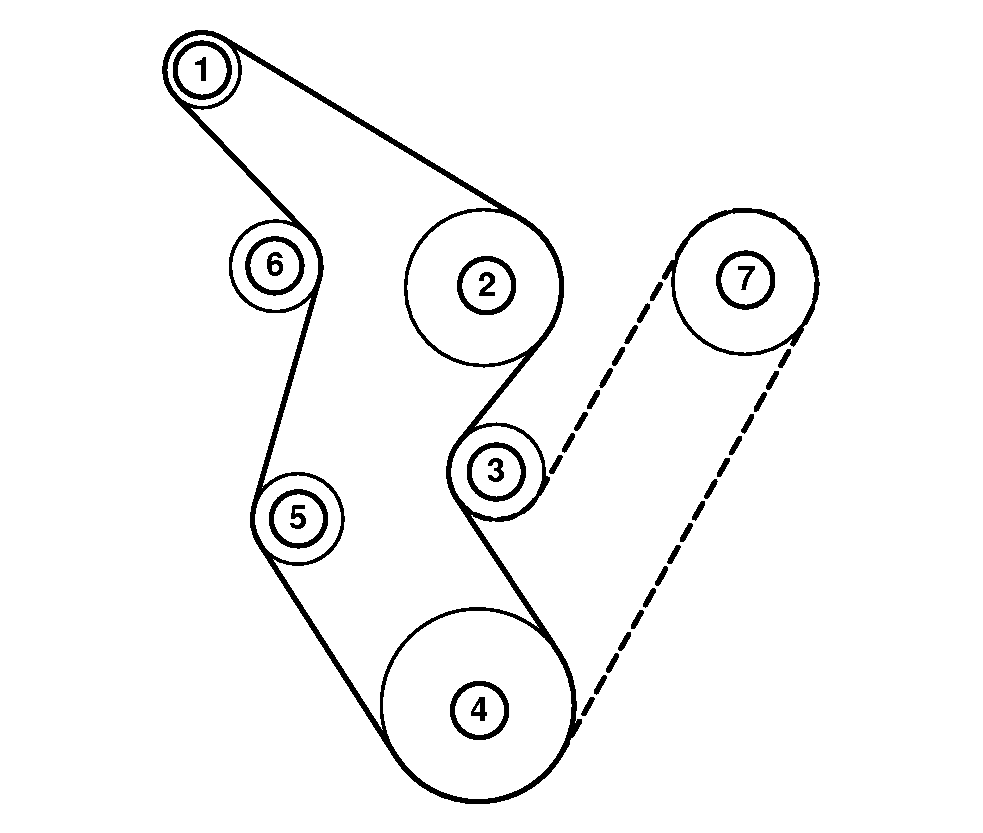

   Belt Routing
   1	Alternator
   2	Fan Drive
   3	Idler
   4	Crankshaft Pulley
   5	Coolant Pump
   6	Tensioner
   7	Air Conditioning Compressor1

6. Install fan clutch wire harness support with locknut and flanged bolt.

   Tighten to specification.

   Item	Measurement	Specification
   Wire Harness Support Lock Nut	Torque	14 N•m

7. Use breaker bar to push tensioner into position for belt installation. (Refer to Inspect Fan Belt Tensioner in this section.)
