Keep Cab Protection System Installed Properly

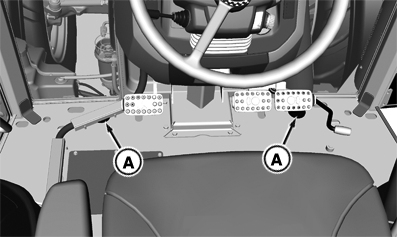

RXA0146930-UN-26JAN15

Plugs—Front Mount

A - Plugs (2 used)

CAUTION: Make certain all parts are installed correctly if cab protection system is loosened or removed for any reason. Replace and tighten mounting cap screws to specification.

The protection offered by cab protection system will be impaired if cab protection system is subjected to structural damage, as in an overturn incident, or is in any way altered by welding, bending, drilling, or cutting. A damaged cab protection system should be replaced, not reused. Any alteration to the cab protection system must be approved by the manufacturer.

When installation of equipment on a machine necessitates loosening or removing cab protection system, replace and tighten mounting cap screws to specification.

Lift up rubber floor mat and pry out plugs (A) to access front mounting hardware. Move cab chassis harness to access left-side plug.

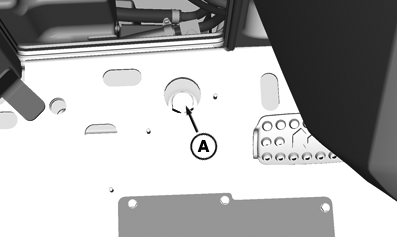

RXA0146931-UN-27JAN15

Front Cab Mount

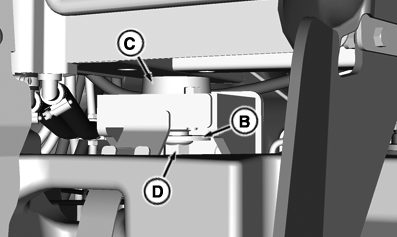

RXA0146932-UN-27JAN15

Front Cab Mount

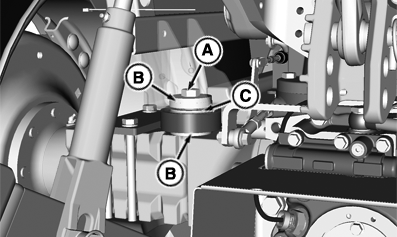

RXA0146933-UN-27JAN15

Rear Cab Mount

A - Cap Screws (4 used)

B - Washers (6 used)

C - Isolators (4 used)

D - Nuts (2 used)

Item	Measurement	Specification
Cab Protection System Mounting Cap Screws—Front	Torque	350 N·m (284 lb-ft)
Cab Protection System Mounting Cap Screws—Rear	Torque	220 N·m (162 lb-ft)
