Locating Fuses

All electrical circuits are protected by fuses. Amperage rating is marked on each fuse, plus fuses are color coded to ensure proper replacement.

Fuse Rating	Color
5 Amp	Orange
10 Amp	Red
15 Amp	Blue
20 Amp	Yellow
30 Amp	Green

IMPORTANT: DO NOT replace original fuse with higher rated fuse or machine damage may occur. If original size fuse will not carry electrical load and continues to blow, have the electrical system checked by your John Deere dealer.

Cab

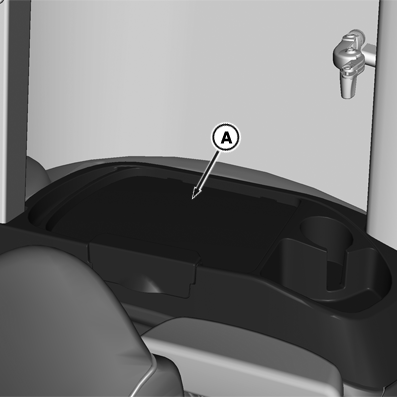

RXA0146934-UN-26JAN15

Left Console Cover

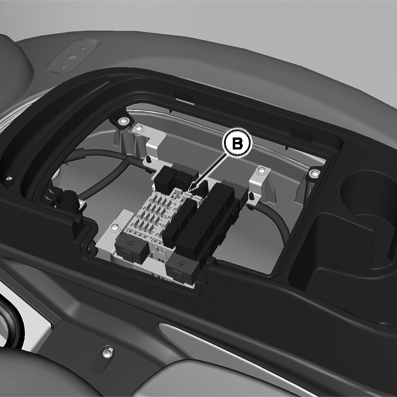

RXA0146935-UN-26JAN15

Load Center

A - Left Console Cover

B - Fuse and Relay Load Center

NOTE: A fuse and relay reference label is provided inside cover.

Open Operator Station

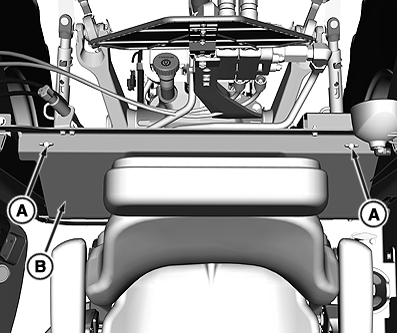

RXA0146181-UN-13NOV14

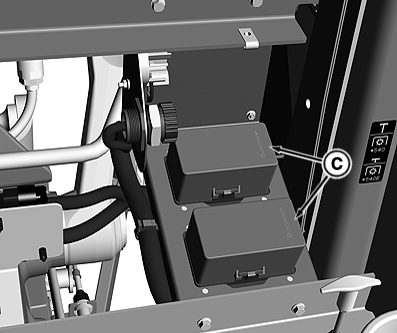

RXA0146182-UN-13NOV14

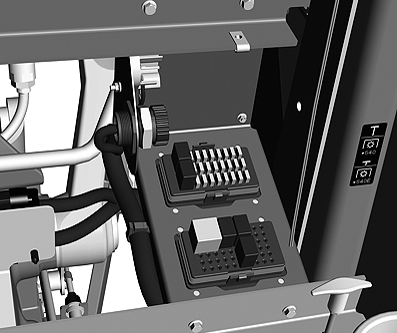

RXA0146183-UN-13NOV14

Main Fuse and Relay Load Center (Left-Hand Side Behind Seat)

A - Wing Nuts

B - Access Panel

C - Cover

Remove wing nuts (A) and access panel (B).

Remove cover (C ) to access main fuse and relay load center.

All electrical circuits are protected by fuses. Amperage rating is marked on each fuse, plus fuses are color coded to ensure proper replacement.
