Radiator

WARNING

RXA01489
RXA01489-19-

LV14755
LV14755-UN-06SEP11

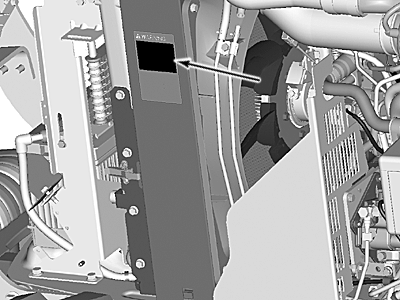

Radiator (Left-Hand Side)

Pressurized cooling system.

To prevent burn injury due to uncontrolled release of steam and hot coolant from the radiator or expansion tank:

  1. Wait until radiator and tank have cooled to the touch.
  2. Loosen cap slowly and allow coolant/steam to release before cap removal.

GS25068,0001B17-19-20150709
