Rear SCV Control Lever and Coupler Identification

RXA0146165-UN-03NOV14

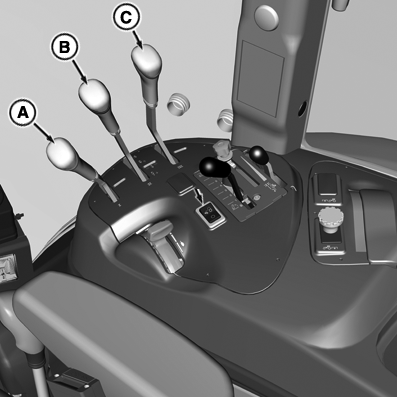

Cab Shown; OOS Similar

RXA0149417-UN-23JUL15

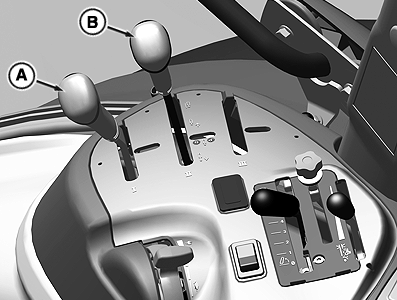

Cab Shown; OOS Similar

RXA0149453-UN-24JUL15

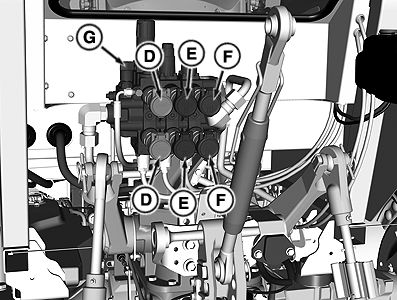

Deluxe Triple SCV

RXA0149454-UN-24JUL15

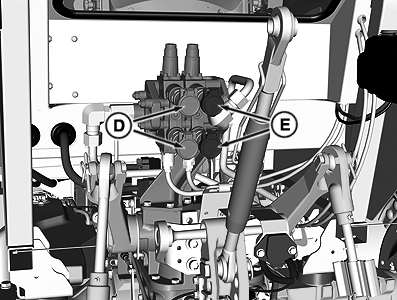

Dual SCV

A - SCV I Control Lever (Green)

B - SCV II Control Lever (Blue)

C - SCV III Control Lever (Brown)

D - SCV I Couplers (Green)

E - SCV II Couplers (Blue)

F - SCV III Couplers (Brown)

G - Adjustable Flow Control

Levers (A—C) control oil flow to corresponding selective control valve (SCV) couplers, at the rear of tractor. Top couplers are for retraction; bottom couplers are for extension.
