Set Rear SCV Detents

Setting Control Lever Detents

LV22089-UN-12JUN14

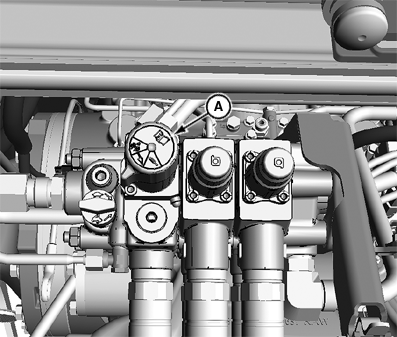

Triple Rear SCV

LV22102-UN-12JUN14

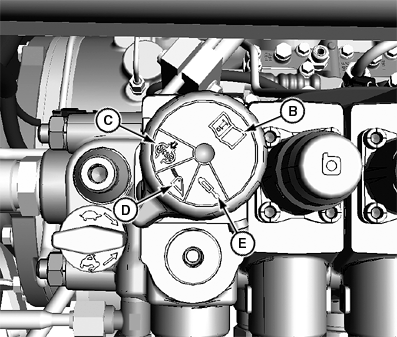

LV22090-UN-12JUN14

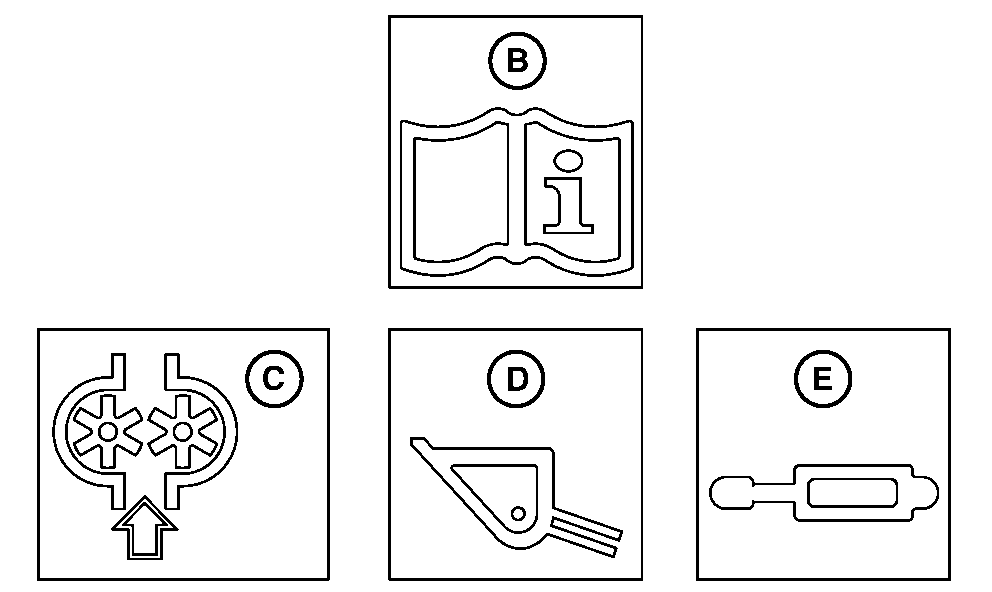

A - SCV Knob

B - Read Operator Manual

C - Continuous Detent (Motor)

D - No Detent (Loader)

E - Automatic Detent (Cylinder)

Section 1 of the deluxe SCV has selectable detents, used to change multi-function lever operations to meet operating requirements of different implements. Detent settings affect only extend and retract lever positions, not “float.”

NOTE: Read Operator’s Manual symbol (B) is for reference only and is not a selectable setting.

The three settings are:

• (C)—Continuous Detent (Motor)
• (D)—No Detent (Loader)
• (E)—Automatic Detent (Cylinder)

SCV I Knob Position	SCV I Control Lever Detent
Continuous Detent (Motor) (C) for cylinder operation	Continuous Detent—Holds lever in operating position until manually returned to neutral.
No Detent (Loader) (D) for loader operation	No Detent—Lever returns to neutral when released.
Automatic Detent (Cylinder) (E) for motor operation	Automatic Detent—Lever automatically returns to neutral when cylinder reaches end of stroke.

IMPORTANT: To avoid overheating hydraulic oil and damage to tractor, use SCV I when long duration “continuous” (motor) operation is required. Section I of deluxe SCV has a flow control valve. When properly adjusted, valve provides flow to operate an implement at required speed while maintaining oil temperature within normal operating range.
