Operate Mid SCV Multi-function Lever—If Equipped

CAUTION: Overheated hydraulic oil causes personal injury and component malfunctions. To prevent hydraulic oil from overheating, DO NOT hold multi-function lever in operating position for an extended period.

PULV004691-UN-11JAN10

RXA0147453-UN-19FEB15

LV14741-UN-30AUG11

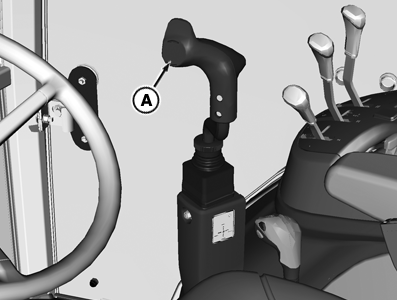

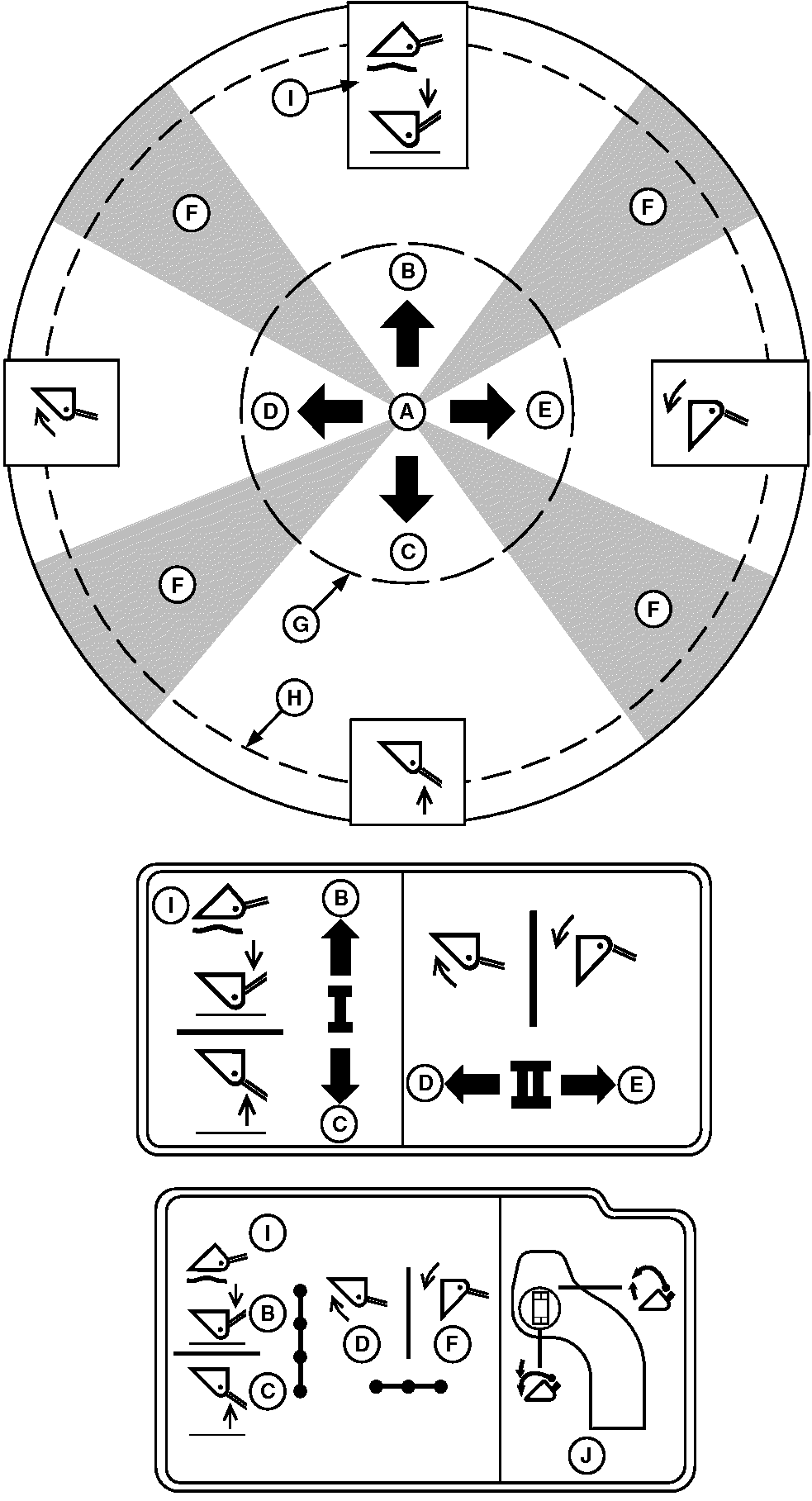

A - Multi-function Lever

B - Front—Boom Lower

C - Back—Boom Raise

D - Left—Bucket Rollback (Curl)

E - Right—Bucket Tilt (Dump)

F - Two-Function Zone

G - Slow Speed

H - Fast Speed

I - Detented “Float” Position

J - Third-Function Operations

NOTE: Multi-function lever and loader operation depend on hose to coupler connection. See “Connect Cylinder Hoses to Mid SCV—If Equipped” in this section.

1. A single function operates when multi-function lever (A) is moved straight away from center, in one of four primary directions (front, back, left, or right).

   • Front—Boom Lower (B)
     • Full-front (I) is a detented position used for “float” operations.
   • Back—Boom Raise (C)
   • Left—Bucket Rollback (Curl) (D)
   • Right—Bucket Tilt (Dump) (E)



2. Two functions operate simultaneously when lever is moved at 45° angles from primary directions, into a two-function zone (F). Two-function zones are: Boom Lower/Bucket Dump, Bucket Dump/Boom Raise, Boom Raise/Bucket Curl, Bucket Curl/Boom Lower.

3. When lever is released to spring-centered neutral position, mid-mount valve holds boom and bucket in position.

4. Cylinder operating speed depends on how far from center the multi-function lever is moved. When lever is first moved from center, hydraulic functions operate slowly (G). Hydraulic functions move progressively faster as lever is moved farther away from center, out to fast operating position (H).

5. Third functions controlled by switch (J) can be operated simultaneously with any single and two function operations.

“Float”: Push lever full forward into detent when “float” is desired. “Float” position (I) allows loader boom to move up and down freely while traveling over rough ground. Manually return lever to neutral when “float” is no longer needed.

Transport Lock

CAUTION: When the front loader is not in use, the multi-function lever must be locked. To do this, turn locking ring (A), and check that the multi-function lever cannot be moved. If not done, the front loader may be actuated while the tractor is in motion, which could lead to serious accidents.

LV16018-UN-28AUG12

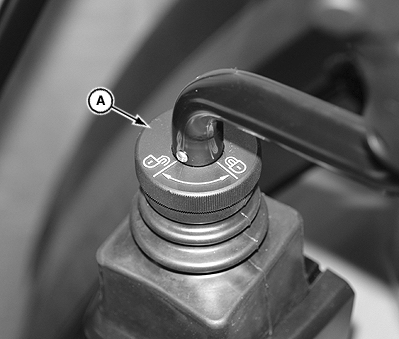

Transport Lock

A - Transport Lock

CAUTION: To prevent loader movement, engage multi-function lever transport lock (A) before dismounting tractor. Control lever must be in center (neutral) position for lock to engage.

Transport lock does not lock out switch operated third-function hydraulics, which are active anytime the key is ON.

• To lock the multifunction for transport, turn the locking ring (A) clockwise aligning the indicator line of the lock symbol to the rivet.
• To unlock, turn the locking ring counterclockwise aligning the indicator line of the unlock symbol to the rivet.

Third-Function (Electrohydraulic)

LV9662-UN-20AUG04

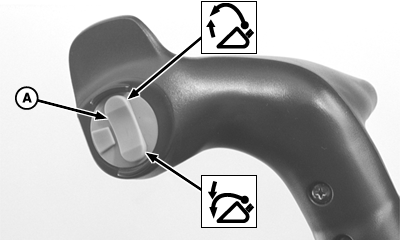

A - Mid SCV Third-Function Switch

Switch (A) controls third-function hydraulics connected to three-function mid-mount valve. Third-function hydraulics are active anytime the key is ON.

• Top half pressed: Attachment retract/raise (grapple open).
• Bottom half pressed: Attachment extend/lower (grapple close).

NOTE: Front switch is not operational in this application.

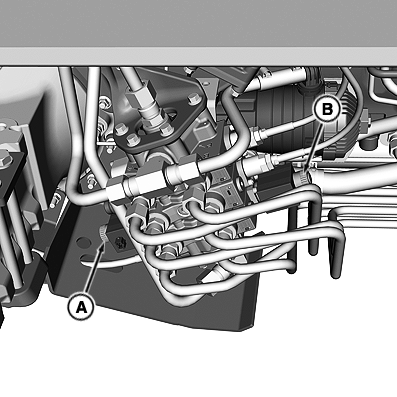

Manually Operating Third-Function (Electro-Hydraulic) Valve Section

NOTE: Mid SCV is located on the right-hand side of tractor behind rear wheel

RXA0146179-UN-05NOV14

A - Access Hole (Retract)

B - Access Hole (Extend)

Third-function (grapple) valve section can be manually operated if an electrical malfunction occurs.

Insert a small diameter punch through access hole (A or B) and push spool to either extend or retract cylinders to release load.
