Warm Transmission-Hydraulic System Oil

Steering, transmission, and hydraulic systems are slow to function when tractor is started in cold weather.

CAUTION: Overheated hydraulic oil may cause personal injury and component malfunctions. To prevent hydraulic oil from overheating, DO NOT hold selective control valve (SCV) or multi-function lever in operating position for an extended period.

NOTE: The rear SCV is preferred, but operator can perform oil warm-up operation at mid SCV.

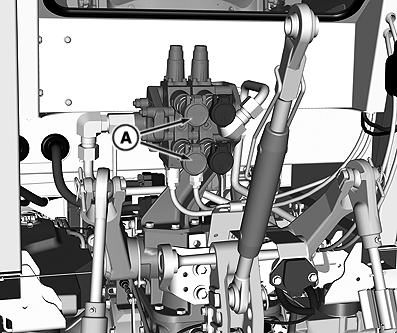

RXA0149455-UN-24JUL15

Dual Rear SCV I Couplers

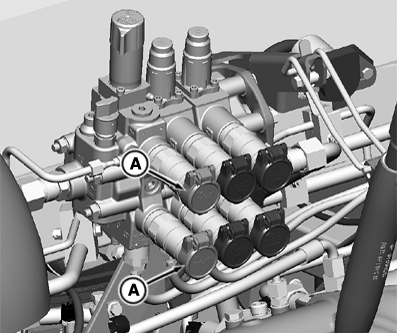

RXA0149426-UN-22JUL15

Deluxe Rear SCV I Couplers

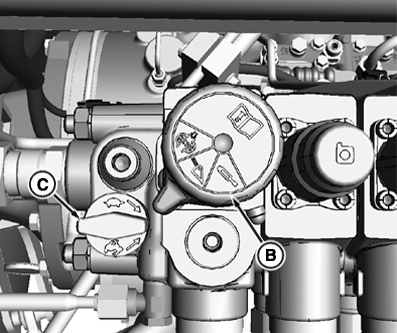

RXA0149427-UN-22JUL15

Deluxe Rear SCV Inlet I Section

A - SCV I Couplers

B - Automatic Detent Position

C - Flow Control Knob

1. Connect jumper hose to SCV I couplers (A).

2. For tractors equipped with deluxe rear SCV or third function mid SCV, perform the following:

   • Turn SCV I selector knob to cylinder (automatic) detent position (B).
   • Turn flow control knob (C) fully counterclockwise (open).



3.

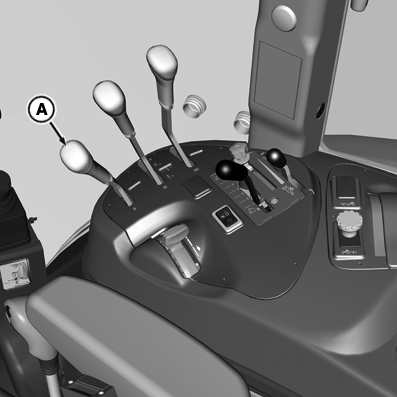

   RXA0146166-UN-03NOV14

   Cab Shown; OOS similar

   A - SCV I Multi-Function Lever

   Depress clutch pedal, start engine and idle at 1200 rpm.

---




4. Move SCV I multi-function lever (A) forward or rearward until hydraulic oil warms to operating temperature.

   NOTE: If equipped with dual rear SCV and for any mid SCV, multi-function lever must be held into extend or retract.

5. To check warm-up progress, turn steering wheel side-to-side. When wheel turns smoothly without hesitation, oil has warmed to operating temperature. After transmission-hydraulic oil has warmed to operating temperature:

6. Return SCV I multi-function lever to neutral.

7. Return detent selector and flow control knobs to original positions and setting.

8. Remove jumper hose.
