Use Rear SCV to Provide Power Beyond Oil

IMPORTANT: Power beyond connections must be used when operating any external hydraulic orbital motor with this tractor. Failure to comply with Power Beyond connections will overheat and possibly damage the tractor’s hydraulic system.

  1. NOTE: If equipped with rear selective control valve (SCV), oil can be supplied to power beyond equipment using SCV 1 on the deluxe SCV (in continuous mode) or by using a power beyond kit with the standard dual rear SCV.

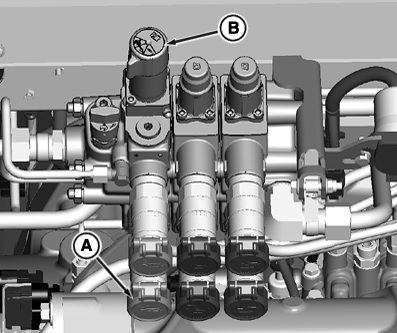

    RXA0149424
    RXA0149424-UN-22JUL15

    Rear SCV

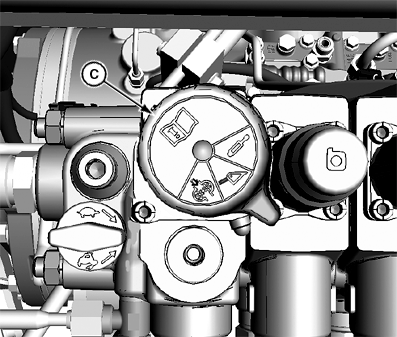

    LV22103
    LV22103-UN-17JUN14

    A - Rear SCV

    B - SCV I Detent

    C - Continuous

    SHUT OFF engine.


  2. Connect power beyond hose to SCV I extend coupler (A).

  3. Set rear SCV I detent (B) to “continuous” (C).

  4. START engine.

  5. Move SCV control lever I into extend.

  6. Oil is now supplied to power beyond device.

  7. To stop, de-activate power beyond device, return SCV control lever I to neutral.

  8. SHUT OFF engine and disconnect hoses.

GS25068,0001B99-19-20150724
