Connect Cylinder Hoses to Rear SCV

RXA0146145
RXA0146145-UN-30OCT14

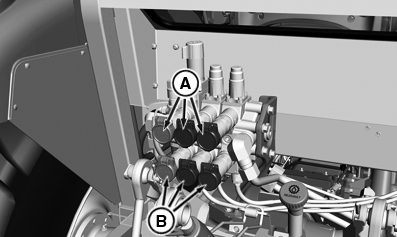

Triple Rear SCV Shown

A - Top (Retract) couplers

B - Bottom (Extend) couplers

IMPORTANT: Hydraulic hoses can fail due to physical damage, kinks, age, and exposure. Check hoses regularly. Replace damaged hoses.

  1. Identify extend and retract hoses.

  2. Remove dust caps (if equipped) from hose end.

  3. Open coupler covers.

  4. Making sure hose end and coupler are clean, push hose tip firmly into selective control valve (SCV) coupler. Pull on hose to make sure positive connection was made.

  5. Connect retract hoses to top couplers (A) and extend hoses to bottom couplers (B).

    Always use SCV extend ports for lift functions for best performance. Deluxe SCV sections (with flow control and selectable detents) perform better than standard SCV sections.

GS25068,0001BDE-19-20150807
