Connect Cylinder Hoses to Mid SCV—If Equipped

RXA0146142-UN-30OCT14

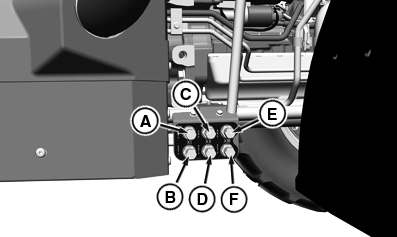

Mid-Mount SCV Couplers

A - Boom Cylinder—Retract

B - Boom Cylinder—Extend

C - Bucket Cylinder—Retract

D - Bucket Cylinder—Extend

E - Third-Function Cylinder—Retract

F - Third-Function Cylinder—Extend

IMPORTANT: Hydraulic hoses fail due to physical damage, kinks, age, and exposure. Check hoses regularly. Replace damaged hoses.

NOTE: Connections are capped and require couplers to be installed if using hose with ISO ends. Direct connection to the fittings can be made for permanent applications.

1. Match hoses to corresponding couplers.

2. Remove dust caps from hose ends.

3. Remove cap assembly from selective control valve (SCV) couplers.

4. Ensure that hose end and couplers are clean, slide sleeve back, push hose tip firmly into coupler and release sleeve.

5. Make sure that positive connection was made by pulling on hose.

   Always use SCV extend ports for lift functions for best performance. Deluxe SCV sections (with flow control and selectable detents) perform better than standard SCV sections.
