Electrohydraulic Transmission System Indicator

LV22005-UN-19AUG14

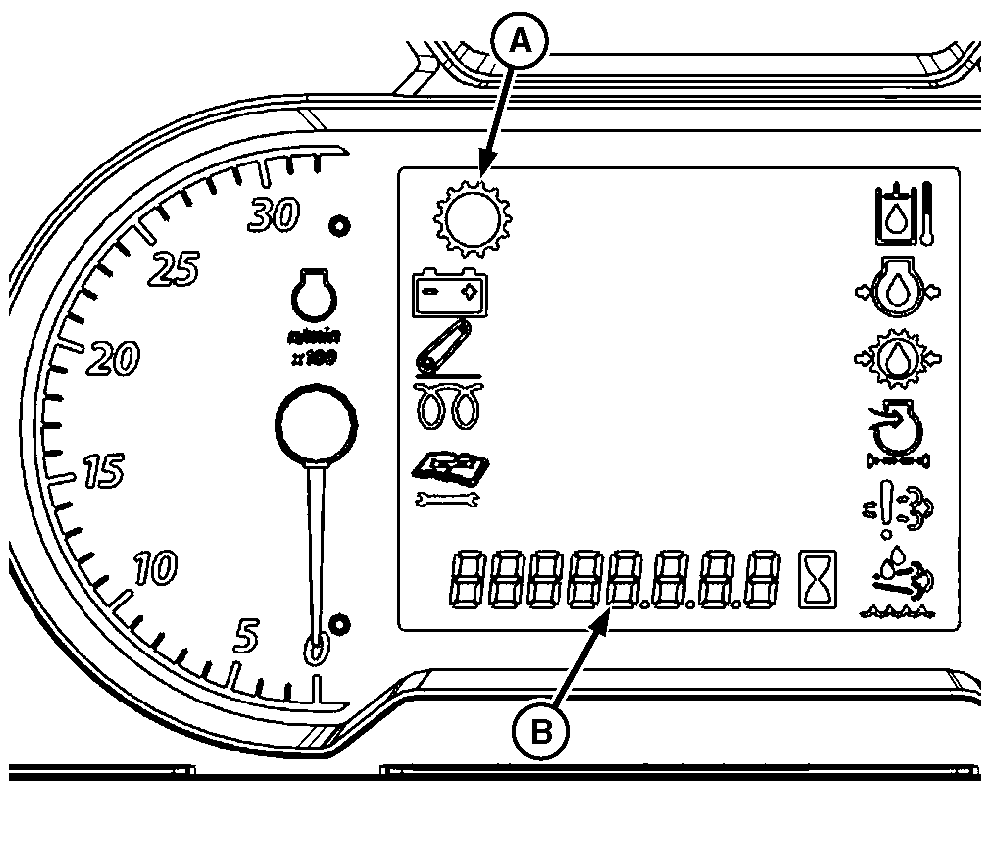

Transmission Indicator

A - Transmission Indicator

B - Information Display

Transmission indicator (A) warns of a malfunction in the electrohydraulic transmission control system. A diagnostic trouble code is displayed at display (B). (See your John Deere dealer)

Electrohydraulic transmission control is available with PowrReverser™ and PowrReverser Plus™ tractors.

NOTE: Under certain circumstances, the tractor can still be driven even if there is an electrical fault in the transmission.

NOTE: Under certain circumstances, transmission control is regained by cycling reverser lever to neutral and back into a direction.
