Use Rear SCV to Operate Loader

LV22106-UN-17JUN14

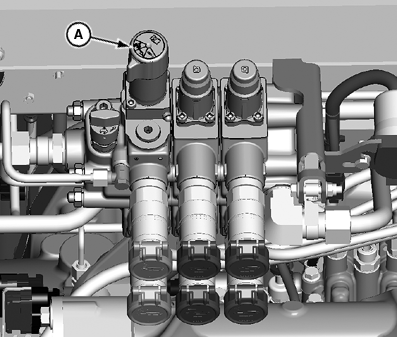

Rear SCV

LV22107-UN-17JUN14

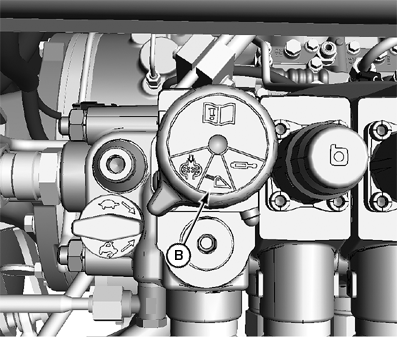

No Detent (Loader) Position

A - SCV Detent Selector Knob

B - No Detent (Loader) Position

CAUTION: Avoid injury or death caused by falling loads. When using selective control valve (SCV) to operate loader, detent must be set in No Detent (Loader) position (B), for loader movement to stop when control lever is released. Moving control lever to a detented position would cause the loader to unexpectedly rise to full height and the load to fall back on the operator or suddenly lower to the ground, causing crushing injury.

When using loader, always put SCV detent selector knob (A) in no detent (loader) position (B) to prevent unexpected machine movement.
