Clean Fuel Tank Vent Filter

CAUTION: Reduce compressed air to less than 210 kPa (2 bar) (30 psi) when using for cleaning purposes. Clear area of bystanders, guard against flying chips, and wear personal protection equipment including eye protection.

LV22351
LV22351-UN-11JUL14

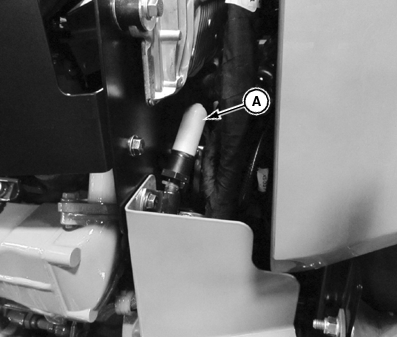

Fuel Tank Vent Filter (Left-Hand Side)

A - Fuel Tank Vent Filter

Raise hood and locate fuel tank vent filter (A) on left-hand side of tractor.

  1. Remove and clean fuel tank vent filter with a soapy solution.
  2. Blow dry with compressed air and install.
  3. If fuel tank vent filter is damaged, replace.

JZ81662,0001374-19-20140710
