Clean Open Crankcase Vent (OCV)

RXA0153040
RXA0153040-UN-06DEC16

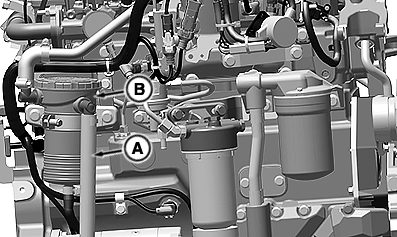

Right Side of Engine

A - Open Crankcase Vent Tube

B - OCV Filter Housing

CAUTION: Reduce compressed air to less than 210 kPa (2 bar) (30 psi) when using for cleaning purposes. Clear area of bystanders, guard against flying chips, and wear personal protection equipment including eye protection.

  1. Remove open crankcase vent tube (A) from the OCV filter housing (B).
  2. Wash in solvent or blow clean with compressed air.
  3. Install OCV tube to the OCV filter housing. Be sure that the vent tube is not kinked or pinched.

BH38674,0000351-19-20161206
