Front Loader Bracket Installation

RXA0154040-UN-10NOV16

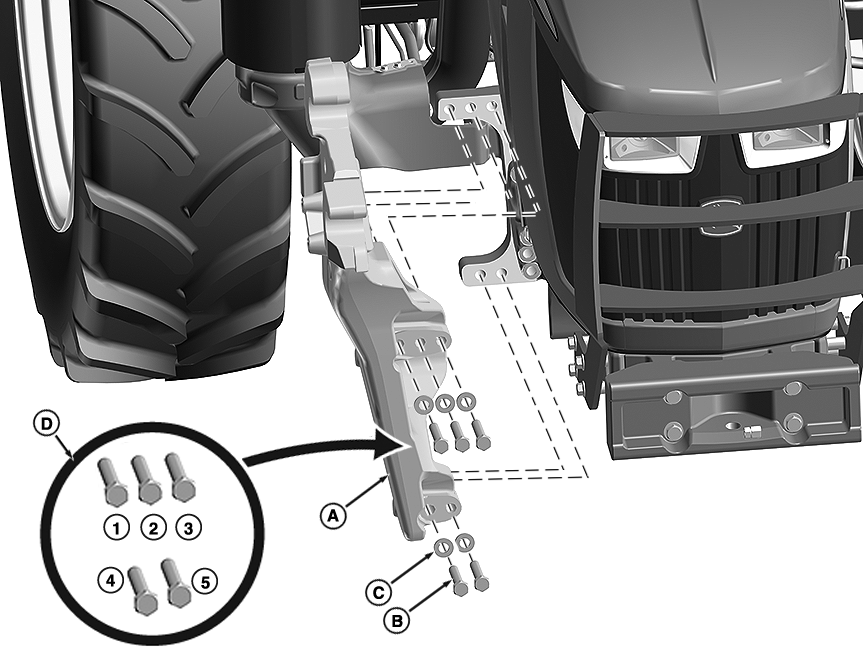

Right-Hand Front Loader Bracket (Left Similar)

A - Front Loader Bracket

B - Hex Head Cap Screw (10 used)

C - Flat Washer (10 used)

D - Torque Sequence

John Deere Front Loader Bracket Hardware
Description	Quantity	Width across flats	Standard	Thread	Length	Identification/Grade
Hex Head Cap Screw (B)	10	30 mm	ISO 4014	M20 x 2.5	110 mm	12.9
Washer (C)	10	—	JDS 130	—	—	300HV

IMPORTANT: Attach loader brackets as shown with hardware listed in the table. Do not attach loader brackets at other points or using other hardware.

Comply with Operator’s Manual and Installation Instructions of the front loader.

1. Torque loader bracket bolts as indicated in the diagram. Follow sequence as indicated 1—5. Right-hand shown, left is opposite.

   Item	Measurement	Specification
   Loader Mounting Bracket Hardware	Torque	625 ± 62.5 N·m (460 ± 46 lb·ft)

2. Start on the top outward bolt first.

3. Work inward to the machine.

4. Repeat on the bottom bracket bolts.

5. Repeat on the other bracket.

6. Check torque regularly.
