Tighten Wheel Bolts—MFWD Axle

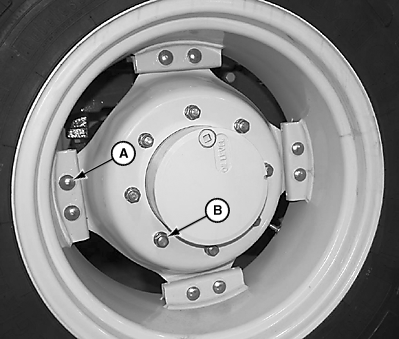

LV14727-UN-25AUG11

A - MFWD Wheel Rim-to-Disk Bolts

B - MFWD Wheel Disk-to-Hub Nuts

1. Tighten wheel rim-to-disk bolts (A) to spec.

   Item	Measurement	Specification
   MFWD Wheel Rim-to-Disk Bolts (A)	Torque	245 N·m (180 lb·ft)

2. Tighten wheel disk-to-hub bolts (B) to spec.

   Item	Measurement	Specification
   MFWD Wheel Disk-to-Hub Nuts (B)	Torque	300 N·m (221 lb·ft)

3. Drive machine 100 m (109 yd) and tighten again.
