Tighten Wheel Bolts—Rear Axle

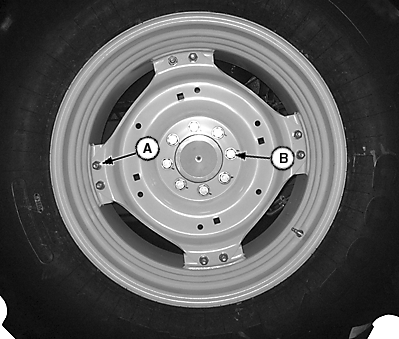

LV14279-UN-10MAY11

A - Rear Wheel Rim-to-Disk Bolts

B - Rear Wheel Disk-to-Hub Nuts

1. Tighten wheel rim-to-disk bolts (A) to specification.

   Item	Measurement	Specification
   Rear Wheel Rim-to-Disk Bolts (A)	Torque	245 N·m (180 lb·ft)

2. Tighten wheel disk-to-hub nuts (B) to specification.

   Item	Measurement	Specification
   Rear Steel Wheel Disk-to-Hub Nuts (B)	Torque	490 N·m (361 lb·ft)

3. Drive machine 100 m (109 yd) and tighten again.
