Jacking Up Machine

RXA0153386-UN-17AUG16

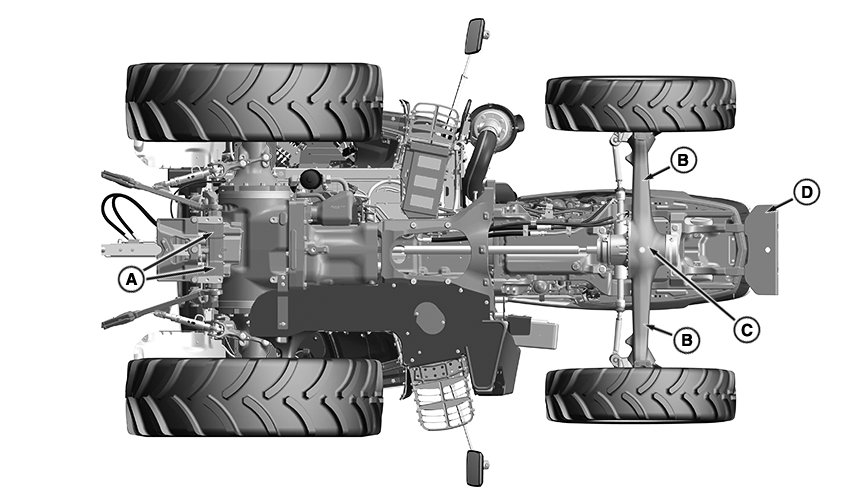

A - Rear of machine Lift Point

B - Front of machine Lift Point

C - Center of Axle Lift Point (use wooden wedges to prevent axle from tilting)

D - Front End of machine under the Basic Weight

NOTE: Recommended to remove front ballast weights before lifting front end of machine.

The illustration shows the recommended lifting points for jacking up the machine. Use a stable jack with sufficient lifting force. See the “Specifications” section of this manual.

JT07211-UN-14DEC06

LX1049890-UN-11FEB11

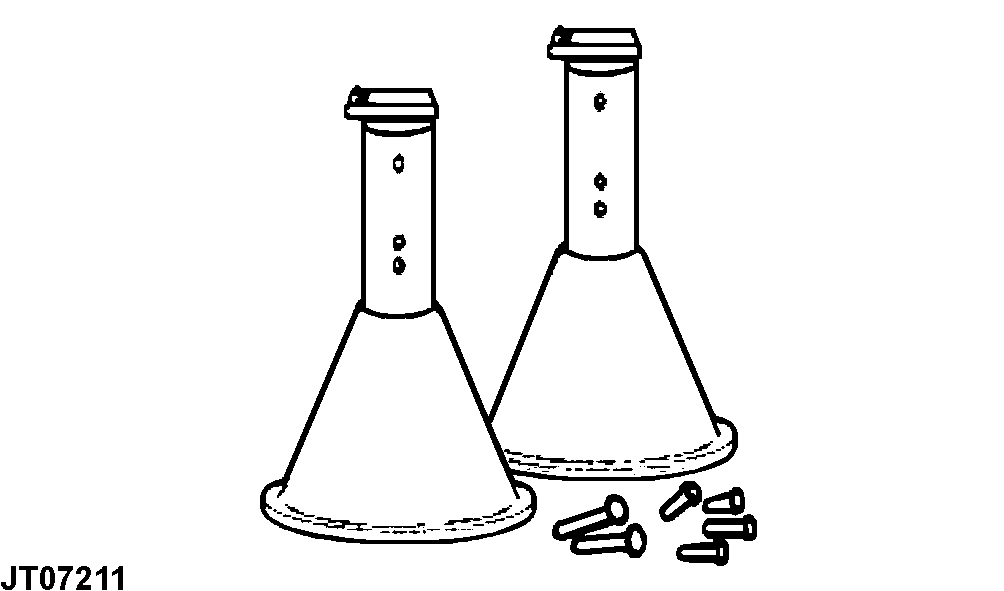

JT02043 - Support Stand, 482—736 mm (19—29 in)

JT02044 - Support Stand, 863—1117 mm (34—44 in)

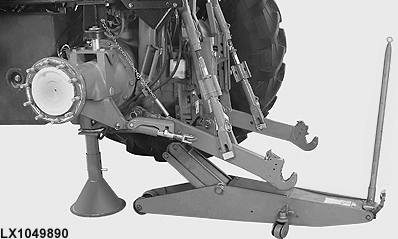

CAUTION: Use approved lifting equipment only. Jack up the machine on firm, level ground only.

Before doing any further work on the machine, first secure it using suitable jackstand. The special John Deere tools shown can be used for this purpose. Support stands are available from your John Deere dealer.
