Adjust Toe-In—MFWD Axle

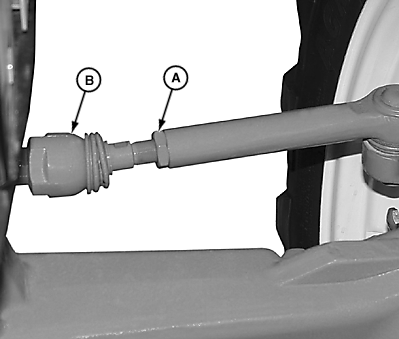

LV14732-UN-25AUG11

A - Tie Rod Jam Nuts

B - Inner Rod

1. Loosen lock nuts (A) on both ends of tie rod.

2. Adjust both sides equally by rotating the inner rod (B) to lengthen or shorten tie rod, as needed, to obtain toe-in or toe-out of less than 3 mm (1/8 in).

   Tie Rod Rotation	Approximate Change
   1/8 turn	4 mm (3/16 in)
   1/4 turn	8 mm (3/8 in)
   1/2 turn	16 mm (5/8 in)

3. Tighten lock nuts to specification.

   Item	Measurement	Specification
   Jam Nuts	Torque	220—240 N·m (162—177 lb·ft)
