Tighten Air Intake and Engine Cooling Hose Clamps

RXA0155960-UN-07DEC16

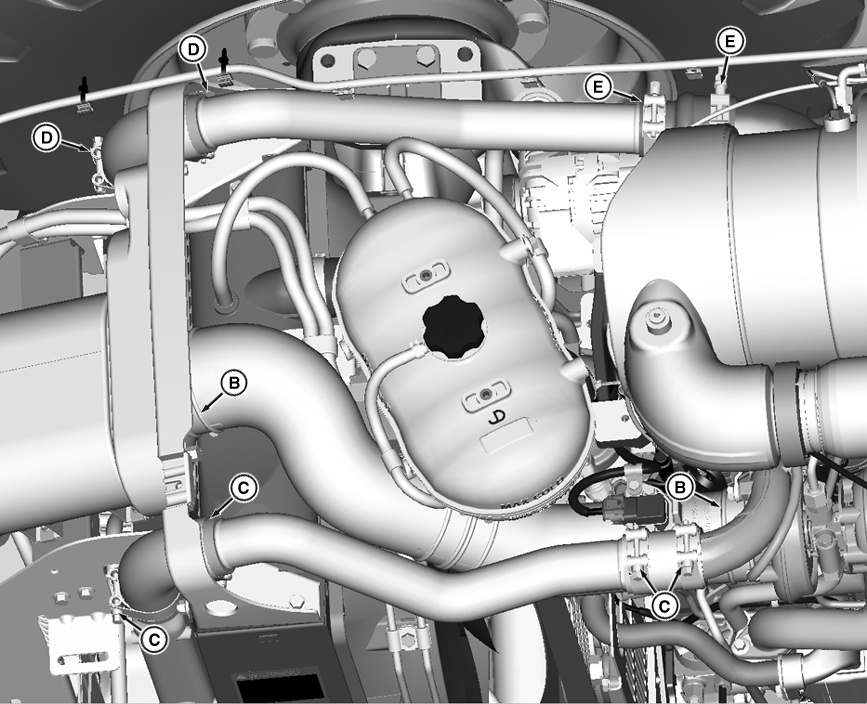

Top Side of Engine

RXA0152213-UN-26MAY16

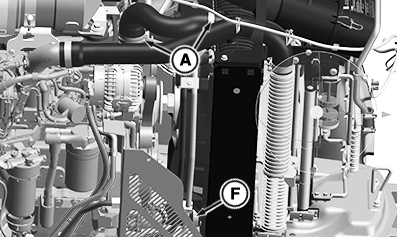

Right Side of Engine

A - Engine to Radiator Cooling System (Radiator Supply) Hose Clamp

B - Air Cleaner to Turbocharger Hose Clamp

C - Turbocharger to Charge Air Cooler Hose Clamp

D - Charge Air Cooler Outlet Hose Clamp

E - Engine Intake Hose Clamp

F - Radiator to Engine Cooling System (Water Pump Supply) Hose Clamp

SERVICE INTERVAL
	INITIAL — 100 Hour
	REGULAR — Every 600 Hour

Inspect hose clamps of the air intake system and engine cooling system. Tighten any loose hose clamps.
