Lubricate Front Hitch

RXA0154215-UN-06OCT16

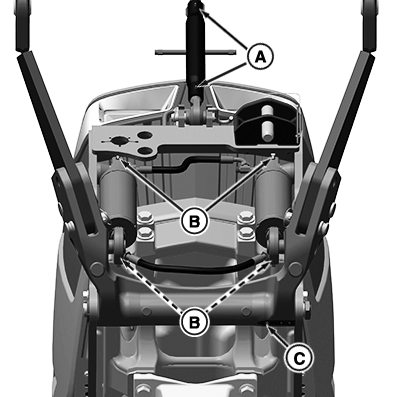

Viewed From Below Hitch

A - Hitch Linkage Grease Point

B - Lift Cylinders Grease Point

C - Hitch Bushing Grease Point

SERVICE INTERVAL
	Weekly or 50 Hour

NOTE: Grease daily when operating in wet and muddy conditions.

Apply several shots of general-purpose grease to the grease points (A—C). See “Fuel, Lubricants, and Coolant” for correct lubricant.
