Clean Cab Air Filters

SERVICE INTERVAL
	Every 600 Hour Cleaning filters is required more often in dusty conditions. Every 500 Hour Replace Activated Carbon Filter

IMPORTANT: Activated carbon filters can NOT be cleaned.

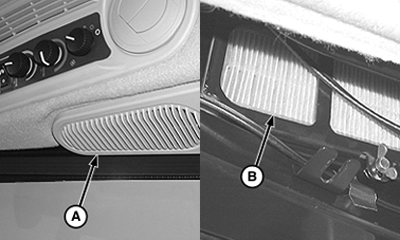

PULV000657-UN-05MAY08

Under Cab Headliner

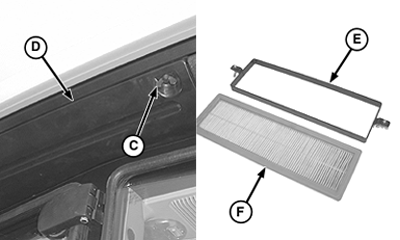

PULV000658-UN-05MAY08

Under Roof

A - Filter Cover—Upper Right Side Shown (Left Side Similar)

B - Recirculated Air Filters

C - Screws (2 used)

D - Filter Cover

E - Retainer Plate (2 used)

F - Fresh Air Filter (2 used)

CAUTION: Check whether the cab offers sufficient protection before working in an environment containing hazardous substances (pesticides and others). Refer to the product data sheets of the spray manufacturer specifying the category required for the cab.

The air system filters are not designed to filter out harmful chemicals. Follow the implement operator's manual and chemical manufacturer instructions when using agricultural chemicals.

1. Remove filter covers (A) and filters (B).

2. Clean filters with compressed air. Inspect filters for damage. Replace as necessary.

3. Remove screws (C), filter cover (D), retainer plate (E), and filter (F) on both sides of the cab above door.

4. Clean filters with compressed air. Inspect filters for damage. Replace as necessary.
