Change MFWD / Suspended Front Axle Wheel Hub Oil

LV15529-UN-05MAR12

LV14649-UN-18AUG11

Drain and Fill Plug

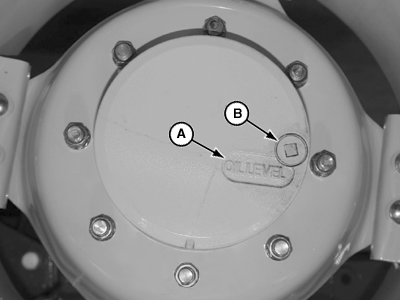

A - Oil Level

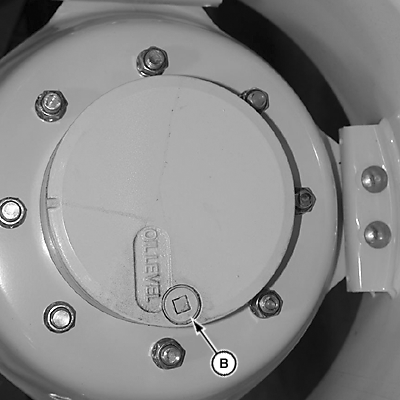

B - Drain-Fill-Drain Port Plug

SERVICE INTERVAL
	Every 600 Hour

NOTE: Approximate oil capacity for MFWD hubs is 0.8 L (0.9 Quarts)

Approximate oil capacity for suspended front axle hubs is 0.6 L (0.7 Quarts)

1. Park machine on a level surface, with wheel rotated until drain-fill port plug (B) is at bottom of hub.

2. Remove drain-fill port plug and drain oil.

3. After oil has drained, move and park machine so that “OIL LEVEL” mark at the drain-fill port is parallel to ground.

4. Add oil until it reaches oil level (A) at bottom of the drain-fill port.

5. Install drain-fill port plug and tighten to specifications.

   Item	Measurement	Specification
   Plug to Hub	Torque	70 N·m (52 lb·ft)
