Change MFWD Axle Housing Oil

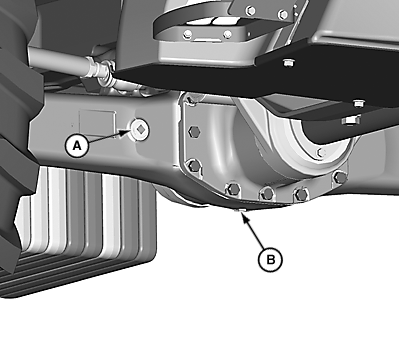

LV14651
LV14651-UN-17AUG11

A - Fill Plug

B - Drain Plug

SERVICE INTERVAL



Every 600 Hour

  1. Park machine on level ground. Remove key.

  2. Remove the fill plug (A) and drain plug (B).

  3. Install drain plug and tighten to specification.

  4. Approximate MFWD axle housing oil capacity is 5 L (1.3 Gal). See “Fuel, Lubricants, and Coolants” section.

  5. Add Hy-gard J20C until even with bottom of fill plug.

  6. Install the fill plug and tighten to specification.

    ItemMeasurementSpecification
    Plug to HousingTorque70 N·m (52 lb·ft)

BH38674,00003C8-19-20161201
