Service Air Cleaner Elements

RXA0152424
RXA0152424-UN-28OCT16

RXA0153091
RXA0153091-UN-28JUL16

RXA0156171
RXA0156171-UN-14DEC16

A - Air Filter Restriction Alarm

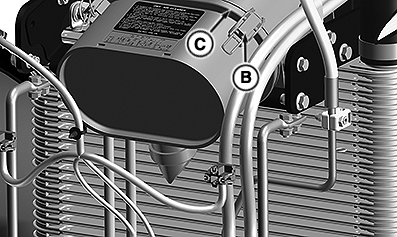

B - Latch

C - Cover

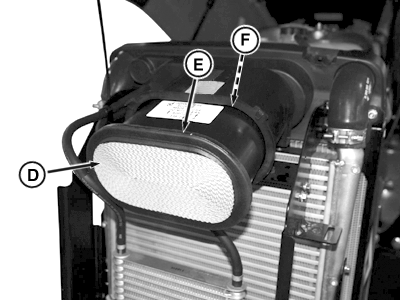

D - Primary Air Cleaner Element

E - Guide Ring

F - Secondary Air Cleaner Element

SERVICE INTERVAL



Every 1200 Hour

IMPORTANT: Dirty air cleaner element is indicated when air filter restricted alarm (A) appears on the information display.

  1. Open hood.

  2. Remove latch (B) and cover (C).

  3. Remove air cleaner element (D). If primary element does not pull out with ease, move side-to-side.

  4. When air cleaner element must be serviced in field, tap it on the palm of your hand. DO NOT use compressed air, filter damage will occur.

  5. Inspect guide ring (E) for damage.

  6. Replace elements if core material or seals (both ends) are damaged, or if indicator remains illuminated.

  7. Install elements and reinstall latch cover.

  8. Lower hood.

BH38674,00003F3-19-20161214
