Check Coolant Level

TS281-UN-15APR13

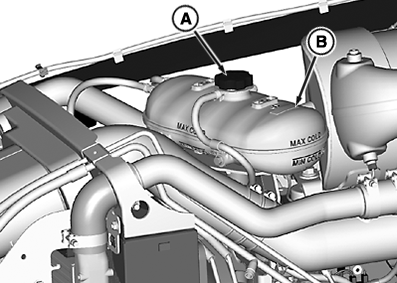

LV14404-UN-28NOV16

A - Cap

B - Coolant Recovery Tank

SERVICE INTERVAL
	Weekly or 50 Hour

CAUTION: Avoid injury from hot, spraying fluid. Add make-up coolant through the coolant recovery tank. If cap must be removed, do not remove when engine is hot. Shutoff engine and wait until cap is cool enough to touch with bare hands. Slowly loosen cap to relieve pressure before removing completely.

1. Park machine on level ground and shutoff engine. Remove key.

2. Allow engine to cool completely.

3. Raise hood and check level in the coolant recovery tank (B).

4. If coolant level is below “MIN” mark, remove cap (A) and add coolant to the recovery tank. Fill tank level between “MIN” and “MAX” mark with Cool-Gard™ II. See “Fuel, Lubricants, and Coolant” section.

5. Replace cap.

6. Lower hood.
