Install Wheel Spacer

NOTE: Front and rear wheel spacers are available. See your John Deere dealer.

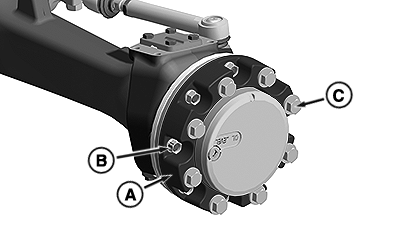

RXA0154078-UN-17NOV16

A - Spacer

B - Flange Nut

C - Cap Screws

Any time hardware is loosened, tighten to specified torque.

1. Install the spacer (A) over the hub.

2. Install flange nut (B) and tighten to specified torque.

   Item	Measurement	Specification
   Flange Nut	Torque	300 N·m (221 lb·ft)

3. Install wheel and tighten cap screws (C) to specified torque. See “Tighten Wheel Bolts—MFWD Axle”.
