Release Park Brake for Towing

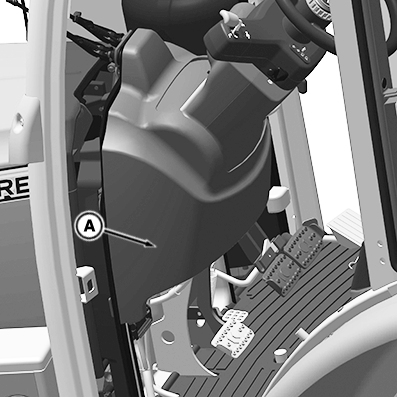

RXA0152621-UN-30JUN16

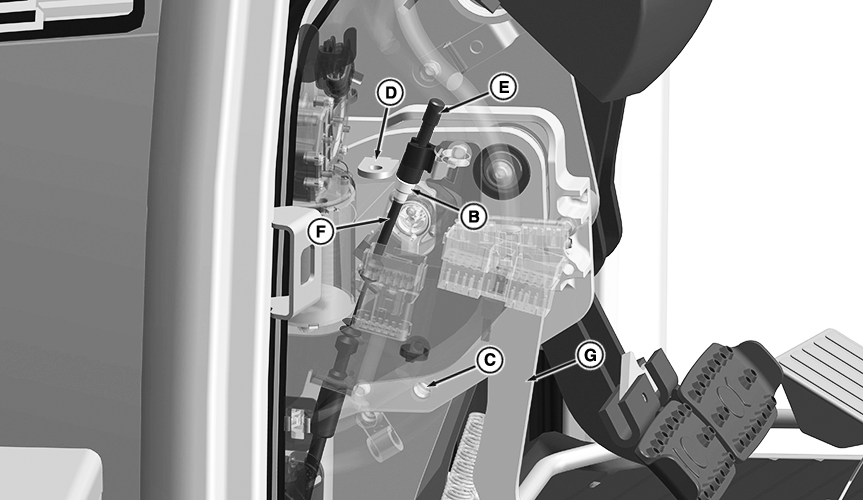

RXA0152622-UN-30JUN16

A - Cowl

B - Knurled Nut

C - Clutch Pedal Lock Hole

D - Park Release Mounting Tab

E - Lock Pin

F - Park Lock Release Cable

G - Clutch Pedal

CAUTION: Machine can roll forward and rearward when the park lock is manually released. Secure machine to prevent movement.

Perform the manual park lock release only when the machine cannot be started and must be towed and park lock cannot be released normally.

Do not operate the machine with the park lock manually released.

1. Remove cowl (A).

2. Free park lock release cable (F) from retaining clip.

3. Loosen and remove lock pin (E).

4. Remove knurled nut (B) from cable.

5. Insert cable through the park release mounting tab (D) from bottom.

6. Secure cable with knurled nut.

7. Depress the clutch pedal (G) and release the park brake.

8. While holding the clutch pedal down, thread the lock pin into the clutch pedal lock hole (C) on the clutch pedal bracket.

9. To return to normal operation, perform procedure in reverse.
