Grab Handles

Exterior Handles

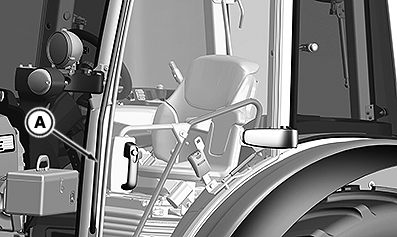

RXA0155040-UN-18OCT16

A - Exterior Grab Handle

Both front corners are equipped with exterior grab handles (A) to assist the operator with entering and exiting the cab.

Interior Handles

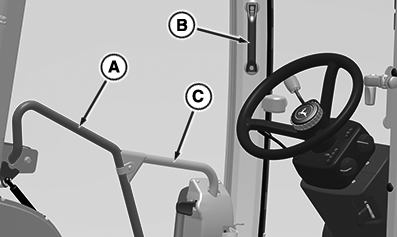

RXA0153905-UN-22SEP16

A - Door Grab Handle

B - Corner Post Grab Handle

C - Passenger Seat Grab Handle

Both doors are equipped with grab handles (A) to assist operator with entering and exiting the cab. The handles are also used to assist opening and closing the doors.

The corner post handle (B) is used to assist the operator when getting into and out of the seat.

The passenger seat grab handle (C) is used by the person in the passenger seat to hold during operation and to open and close the door.
