Passenger Seat

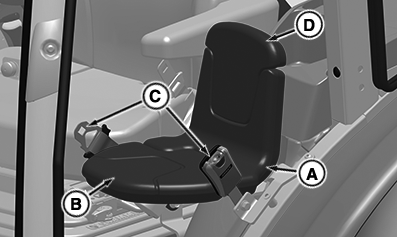

RXA0154077-UN-23SEP16

A - Passenger Seat

B - Seat Bottom

C - Seat Belt

D - Backrest

CAUTION: Passenger seat (A) is provided only for training operators or diagnosing machine problems. Keep all other riders off machine and equipment. Always wear seat belt (C).

Seat bottom (B) is spring loaded and has no lock or unlock mechanism to fold or unfold. Push seat bottom upward or downward as required.

Seat backrest (D) extends by pulling upward in the center and retracts by pushing downward.
