Mirrors

Exterior Telescoping Mirrors

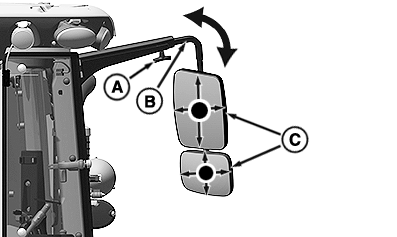

RXA0155043-UN-25OCT16

A - Mirror Arm Adjustment Screw

B - Mirror Arm

C - Mirrors

Loosen mirror arm adjustment screw (A) and slide mirror arm (B) inward or outward to desired position. Securely tighten locking knob when adjustment is complete. Push mirrors arm forward or pull rearward to desired position. Push mirrors (C) up, down, left, or right to move into desired position.

Exterior Non-Telescoping Mirrors

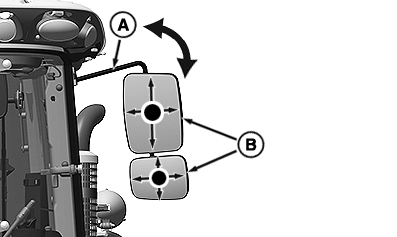

RXA0155044-UN-25OCT16

A - Mirror Arm

B - Mirrors

Push mirror arm (A) forward or pull rearward to desired position. Push mirrors (B) up, down, left, or right to move into desired position.

Interior Rearview Mirror

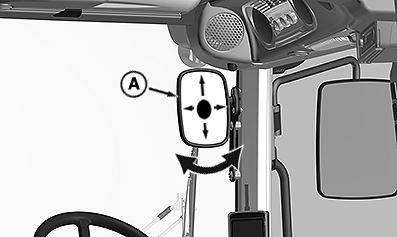

RXA0153918-UN-23SEP16

Premium Cab Mirror

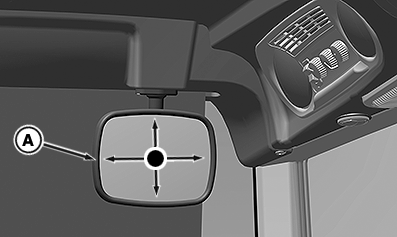

RXA0153919-UN-23SEP16

Standard Cab Mirror

A - Mirror

Push mirror (A) up, down, left, or right to move into desired position.

Hitch Rearview Mirror

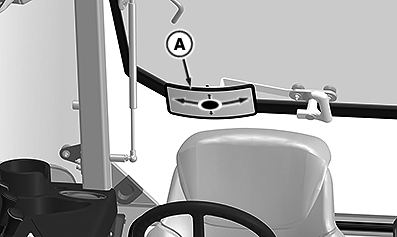

RXA0154064-UN-23SEP16

A - Hitch Rearview Mirror

Push hitch rearview mirror (A) up, down, left, or right to move into desired position to view the hitch and drawbar area.
