Rear Window Cable Routing

RXA0154076
RXA0154076-UN-23SEP16

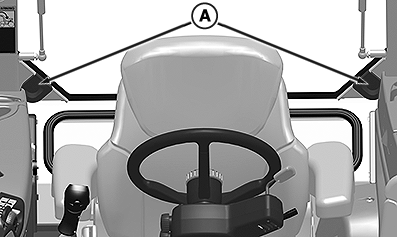

A - Cable Routing Locations

The rear window of the cab is provided with two openings (A), allowing the cables to be routed.

  1. Open the window and take out the rubber stoppers.

  2. Cut the rubber stoppers at the incisions provided to enable the cables to be routed.

  3. Route cables and make connections as required.

  4. Insert the rubber stoppers and close the window.
