Air Suspension Seat

RXA0153911-UN-22SEP16

RXA0153910-UN-22SEP16

RXA0154068-UN-23SEP16

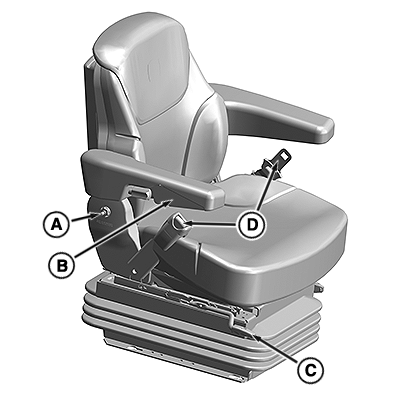

A - Armrest Angle Adjustment Knob

B - Armrest

C - Forward/Rearward Adjustment Lever

D - Seatbelt

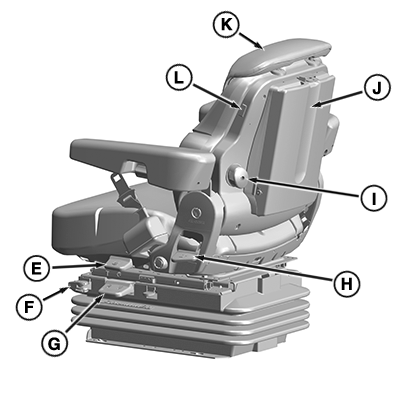

E - Swivel Adjustment Lever

F - Forward/Rearward Suspension Adjustment Lever

G - Weight Adjustment Lever

H - Backrest Angle Adjustment Lever

I - Lumbar Adjustment Knob

J - Operator Manual Compartment

K - Back Rest

L - Heated Seat Switch

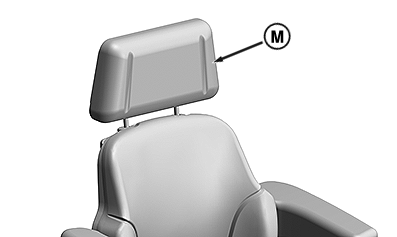

M - Back Rest Extension (Optional)

CAUTION: Wear seat belt at all times during machine operation.

NOTE: Adjust with the operator in the seat for best results.

Seatbelt

1. Pull tab end of the seat belt (D) to extend.
2. Push tab into latch end until an audible click is heard.
3. Tug on the seat belt to ensure that it is latched.
4. Upon exiting, depress the button on the latch to release.

Armrest Adjustment

Armrest angle adjustment knob (A) allows armrest (B) tilt to be adjusted (infinitely variable). To lower the armrest by 30°, press the knob into the armrest.

Pull upward on armrest to tilt up out of the way.

Forward/Rearward Adjustment

1. Lift forward/rearward adjustment lever (C) up.
2. Select desired position.
3. Release lever to lock in position.

Forward/Rearward Suspension Adjustment

• Flip lever (F) forward for forward/rearward suspension.
• Flip lever rearward for NO forward/rearward suspension.

Weight Adjustment

1. Lift weight adjustment lever (G) up.
2. Reach desired suspension for operator weight.
3. Release lever to lock seat in position.

Backrest Angle Adjustment

1. Lift backrest angle adjustment lever (H).
2. Tilt backrest (H) forward or rearward as desired.
3. Release lever to lock in position.

Lumbar Adjustment

Rotate lumbar adjustment knob (I) to increase or decrease support.

Swivel Adjustment

1. Lift swivel adjustment lever (E) up.
2. Rotate seat to desired position. Seat turns 15° to the right. Seat locks at 7.5° intervals.
3. Release lever to lock in position.

Heated Seat

Turn heated seat switch (L) on or off as desired.

Back Rest

The back rest (K) also has a back rest extension (M).

Operator Manual Compartment

You can access your operator manual by using the operators manual compartment (J).
