Front Tow Points

RXA0151018-UN-19JAN16

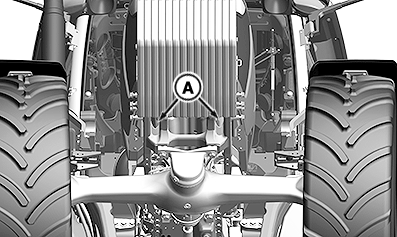

Oil Pan Tow Points (Weights Installed)

RXA0151020-UN-19JAN16

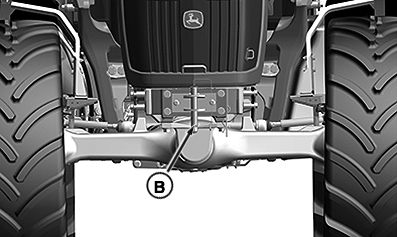

Front Tow Point (Without Weight Bracket)

RXA0151069-UN-06DEC16

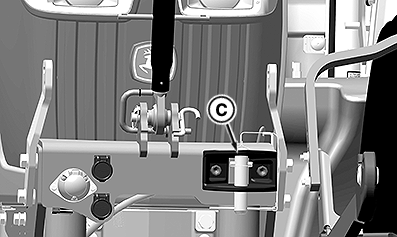

Front Hitch Tow Point

RXA0151311-UN-11NOV16

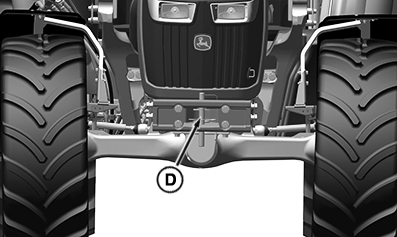

Front Tow Point (Weight Bracket Without Weights)

RXA0155033-UN-18OCT16

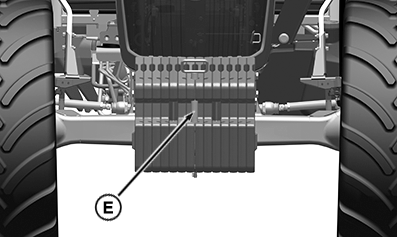

Front Tow Point With Weight

A - Oil Pan Tow Points

B - Front Tow Point

C - Front Hitch Tow Point

D - Front Weight Bracket Tow Point

E - Front Weight Tow Point

CAUTION: Using improper towing devices can result in device failure and personal injury. If towing or freeing a mired machine is required, use pins, clevises, tow straps, or chains which are rated higher than the machine and implement weight. See your John Deere dealer.

Connect to the points (A—E) as necessary, which are indicated in the pictures. Oil pan tow points (A) can be used on any machine if a chain with hooks on both ends is secured to both points.
