Rear Tow Points

PULV004940-UN-19JUN09

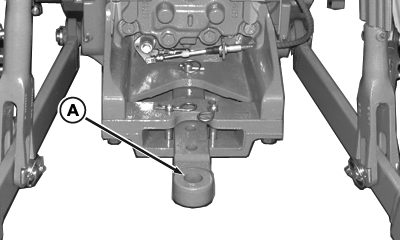

Rear Drawbar Tow Point

RXA0151070-UN-26JAN16

Rear Wagon Hitch Tow Point

RXA0155075-UN-19OCT16

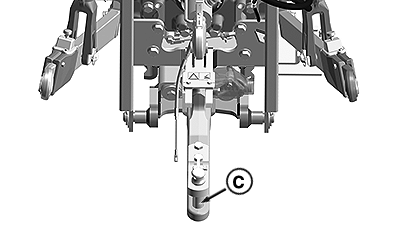

Pickup Hitch Tow Point

A - Rear Drawbar Tow Point

B - Rear Wagon Hitch Tow Point

C - Pickup Hitch Tow Point

CAUTION: Using improper towing devices can result in device failure and personal injury. If towing or freeing a mired machine is required, use pins, clevises, tow straps, or chains which are rated higher than the machine and implement weight. See your John Deere dealer.

Connect to the points (A—C) as necessary, which are indicated in the pictures.
