Brake Operation with AutoClutch™

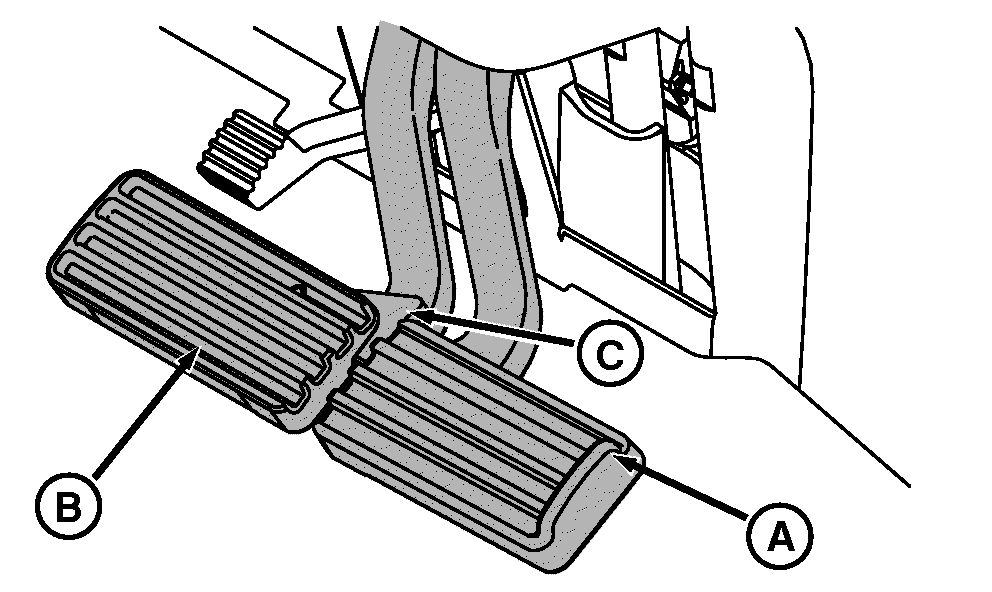

RXA0122335
RXA0122335-UN-17NOV11

A - Right Brake Pedal

B - Left Brake Pedal

C - Pedal Lock Tab

CAUTION: Avoid possible injury. Braking machine while commanding high engine speed requires higher brake pedal force.

Avoid possible injury due to sudden or unexpected acceleration. When brake pedals are released, machine automatically accelerates to speed currently commanded by throttle and speed control levers.

IMPORTANT: Damage to brakes could result if brake pedals are not locked together using pedal lock tab (C) during transport using AutoClutch™

  1. Depress both brake pedals (A and B). Brakes activate AutoClutch™ (automatic clutch function, similar to an automotive automatic transmission) to stop machine. It is not necessary to depress the clutch pedal, reduce engine speed, or move speed control lever.

  2. Machine slows down and ultimately to a complete stop as long as the brakes are held.

  3. When brakes are released, machine automatically returns to the current start gear and set speed programmed by the operator.
