Operate Rear Hitch Fender Switch

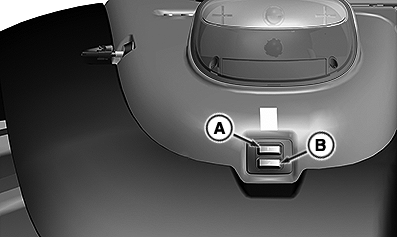

RXA0155429-UN-04NOV16

A - External Raise Switch

B - External Lower Switch

CAUTION: Put machine in Park before using fender switches. Implement moves when fender switches are used. Stay clear of interference points during operation

NOTE: When remote hitch switches are pressed; the hitch moves slowly, but increases speed the longer hitch switch is held.

1. Implement is raised when top switch (A) is held.

2. Implement is lowered when bottom switch (B) is held.

3. Once external position control switch activates, the hitch is prevented from moving using the position control lever.

   To reactivate the lever, place lever at a position that corresponds with hitch position and then actuate quick raise/lower buttons.
