Rear Hitch Controls

RXA0153750
RXA0153750-UN-08SEP16

RXA0155682
RXA0155682-UN-14NOV16

RXA0155683
RXA0155683-UN-14NOV16

RXA0153755
RXA0153755-UN-12SEP16

RXA0153756
RXA0153756-UN-12SEP16

A - Position Control Lever Stop

B - Position Control Lever

C - Quick Lower Button

D - Quick Raise Button

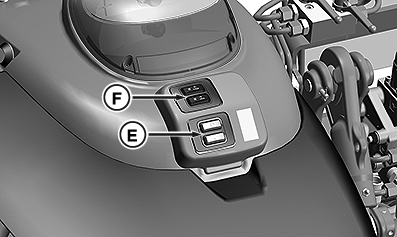

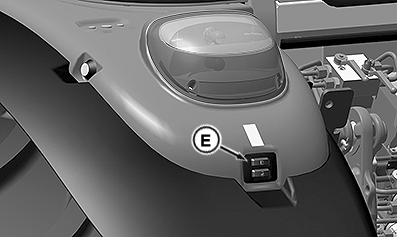

E - Rear Hitch Fender Switch

F - SCV IV Fender Switch

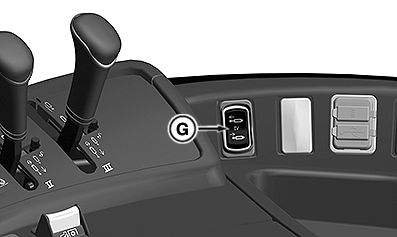

G - SCV IV Switch

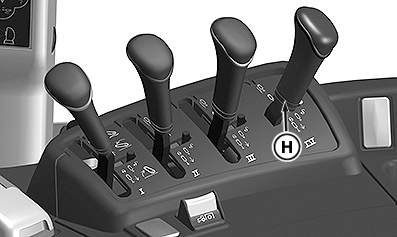

H - SCV IV Lever

NOTE: SCV IV lever and switches (as configured on machine) control the hydraulic center link.

BH38674,0000555-19-20161116
