Level Hitch - Ball End

LV14578-UN-05AUG11

LV14579-UN-05AUG11

RXA0153759-UN-12SEP16

Ball End Hydraulic Center Link

A - Locking Clip

B - Center Link Counterclockwise Rotation

C - Center Link Clockwise Rotation

D - Locking Handle

E - Locking Tab

F - Slot

G - Roll Pin

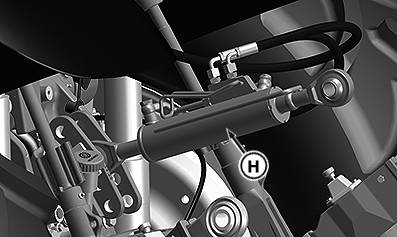

H - Hydraulic Center Link

IMPORTANT: DO NOT attempt to overextend the center link beyond limits of locking clip or lift links past the stop indicators (missing thread). Link body threads could be damaged.

Manual Center Link Adjustment:

1. Lower implement to ground and adjust center link to level implement front-to-rear.

2. NOTE: Maximum adjustment range of the center link can only be obtained if the ends are positioned equally within the body when attached to an implement.

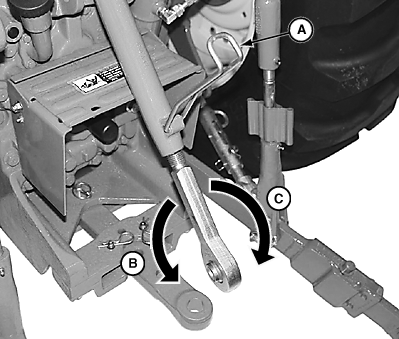

   Unlatch locking clip (A). Rotate link body:

   1. Clockwise (C) to lengthen.

   2. Counterclockwise (B) to shorten.

3. Latch locking clip.

Lift Link Adjustment:

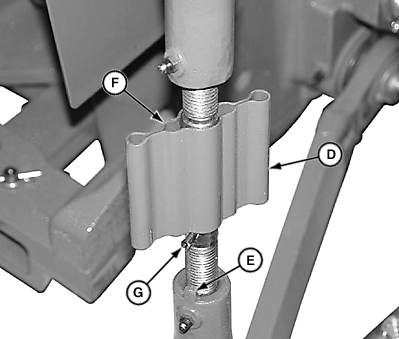

1. Adjust lift link to level implement side-to-side. Lift locking handle (D) to clear locking tab (E). Keep slot (F) engaged on roll pin (G) and turn locking handle (D):

   1. Clockwise to raise the draft link.

   2. Counterclockwise to lower the draft link.

2. When adjustment is complete, align slot (F) with locking tab (E), and lower to lock in place and prevent change of adjustment during operation.

Hydraulic Center Link Adjustment:

1. Engage implement in application.

2. Use SCV IV to extend or retract hydraulic center link (H) cylinder to level implement front-to-rear.
