Stabilizing System

LV16047
LV16047-UN-10SEP12

A - Adjustment Chain

B - Flap Cover

C - Locking Pin

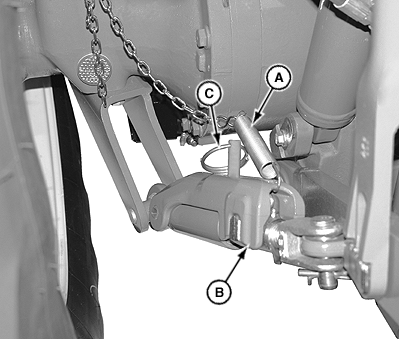

The stabilizing system is operated by means of adjustment chain (A) and flap cover (B). When locking pin (C) is removed and flap cover (B) is raised, the draft links have lateral play. When lowered, and secured with locking pin, draft links are locked.


Adjustment Chain (A) Short:

Draft links are locked in raised position (rigid setting), in lowered position they have lateral play.


Adjustment Chain (A) Long:

Draft links are locked in all positions.
