PTO Guard

RXA0153738-UN-13DEC16

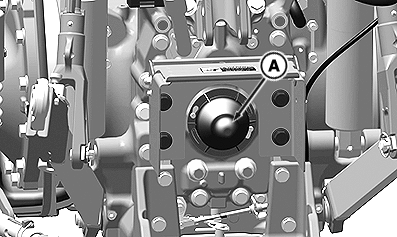

Rear PTO Guard

RXA0155306-UN-28OCT16

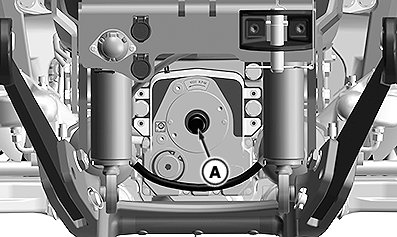

Front PTO Guard

A - PTO Guard

CAUTION: Keep PTO guard in place when a PTO implement is not attached.

Ensure that PTO is OFF and has come to a complete stop before attaching or detaching implements.

Remove guard (A) when attaching a PTO driven implement. After PTO driven implement is unattached, replace PTO guard.
