PTO Shield

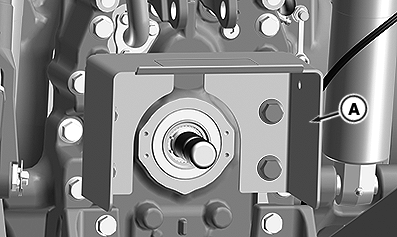

RXA0153742-UN-07SEP16

Fixed PTO Shield

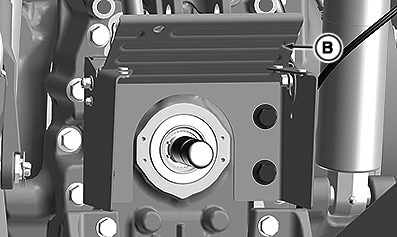

RXA0153743-UN-07SEP16

Flip-up PTO Shield

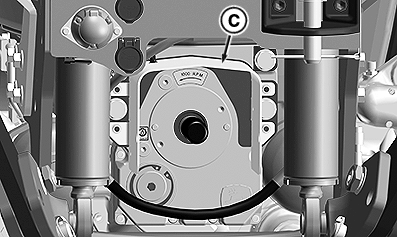

RXA0155307-UN-09DEC16

Front PTO Shield

A - Fixed PTO Shield

B - Flip-up PTO Shield

C - Front PTO Shield

CAUTION: Avoid injury, do not remove the PTO shield or use as a step.

Two types of PTO shields are available, fixed (A) and flip-up (B).

The fixed version does not open up. The front PTO shield (C) is fixed only.

The flip-up version allows the top to be moved up to allow more room to connect implements. Once the implement is connected, the top must be pushed down parallel to PTO shaft before engaging PTO to provide proper protection.
