Operate Front PTO

RXA0155138
RXA0155138-UN-26OCT16

RXA0155139
RXA0155139-UN-26OCT16

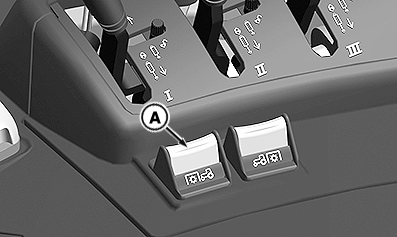

A - Front PTO Switch

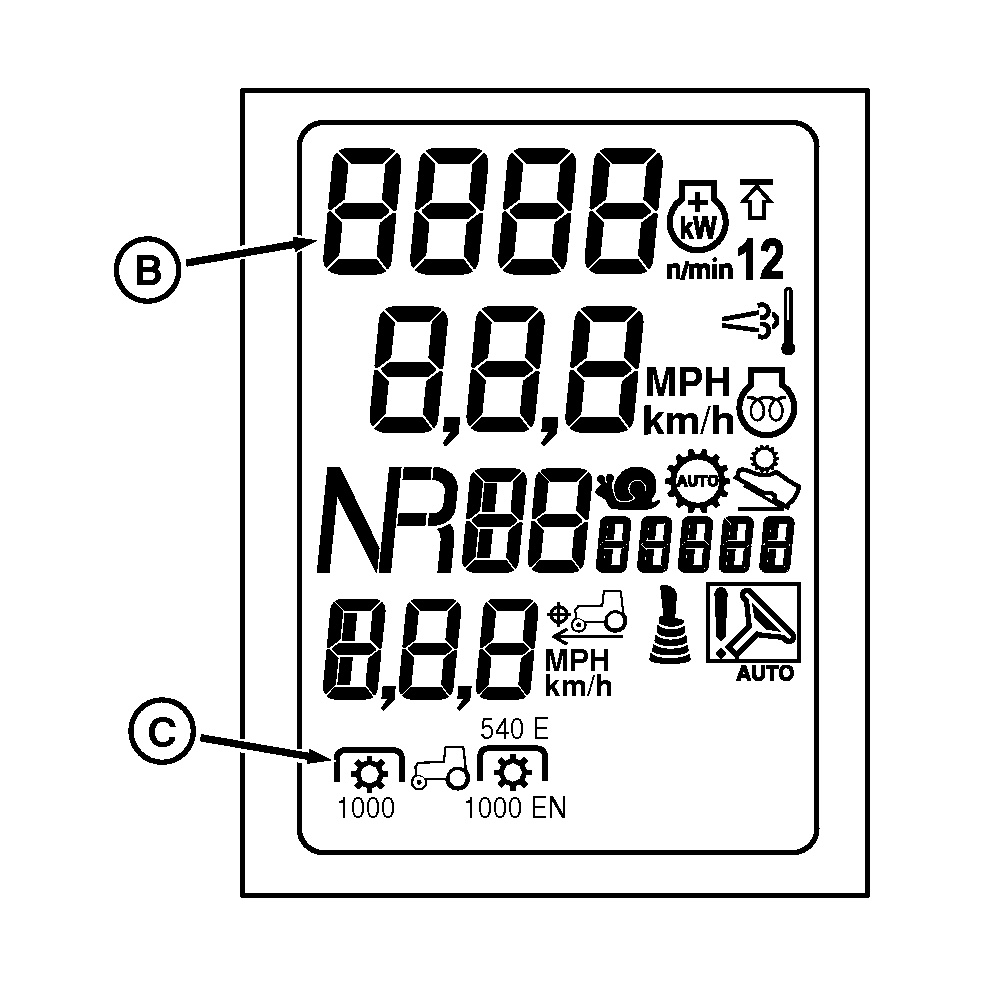

B - Tachometer

C - Front PTO Indicator

CAUTION: If PTO engages at engine start-up, contact your John Deere dealer for service.

NOTE: Engine starts with PTO switch engaged, but PTO switch must be cycled off and on again before PTO engages.

  1. Start engine and set to correct rated speed for PTO application. Observe tachometer (B) for engine speed.

    Front PTO

    Engine Speed (rpm)

    1000

    2100

  2. Push down and forward on front PTO switch (A) to engage PTO. Front PTO indicator (C) illuminates on the primary display.

  3. Pull front PTO switch (A) rearward to disengage PTO.
