Remote PTO Operation

RXA0155831-UN-18NOV16

Rear PTO Fender Switch

RXA0156059-UN-05DEC16

RXA0153747-UN-07SEP16

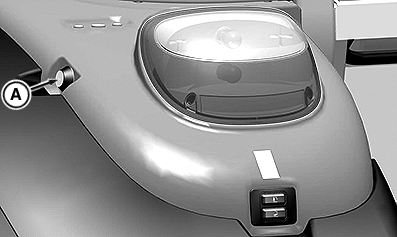

A - Rear PTO Fender Switch

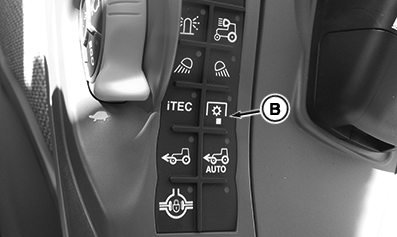

B - Remote PTO Button

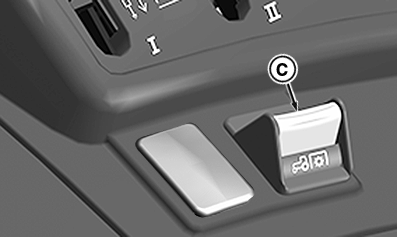

C - Rear PTO Switch

To operate rear PTO from outside of cab:

1. Depress remote PTO button (B) on the keypad.

2. Push down and forward on rear PTO switch (C) to arm PTO.

3. An audible warning sounds and hazard warning lights flash to indicate that the rear PTO fender switches are activated. PTO shaft is not moving.

4. Press and hold rear PTO fender switch (A). Rear PTO starts slowly.

   • Press and hold switch for at least 4 seconds:
     • Warning lights turn off
     • PTO continues to operate
   • Release switch within 4 seconds:
     • PTO slowly stops
     • Audible warning sounds
     • Warning lights flash



5. Press rear PTO fender switch (A) again to shut off rear PTO or pull rear PTO switch (C) rearward.
