Hydraulic Center Link

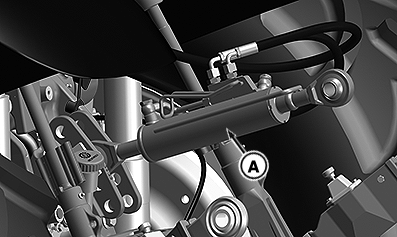

RXA0153879-UN-12SEP16

Ball End Hydraulic Center Link

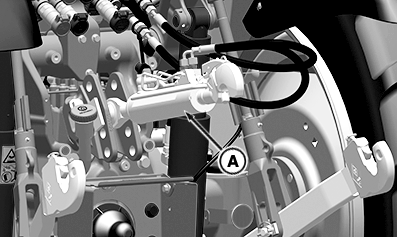

RXA0155554-UN-08NOV16

Hook End Hydraulic Center Link

A - Hydraulic Center Link

CAUTION: To prevent injury, allow sufficient clearance in working zones.

IMPORTANT: To prevent machine damage, do not subject center link to excessive loads.

NOTE: Do not use continuous flow or timed detents with hydraulic center link. Make sure that SCV detent time is set to 0.

Length of the hydraulic center link (A) can be adjusted from the operator's seat or rear left fender using SCV IV control.
